Visual SLAM (vSLAM)

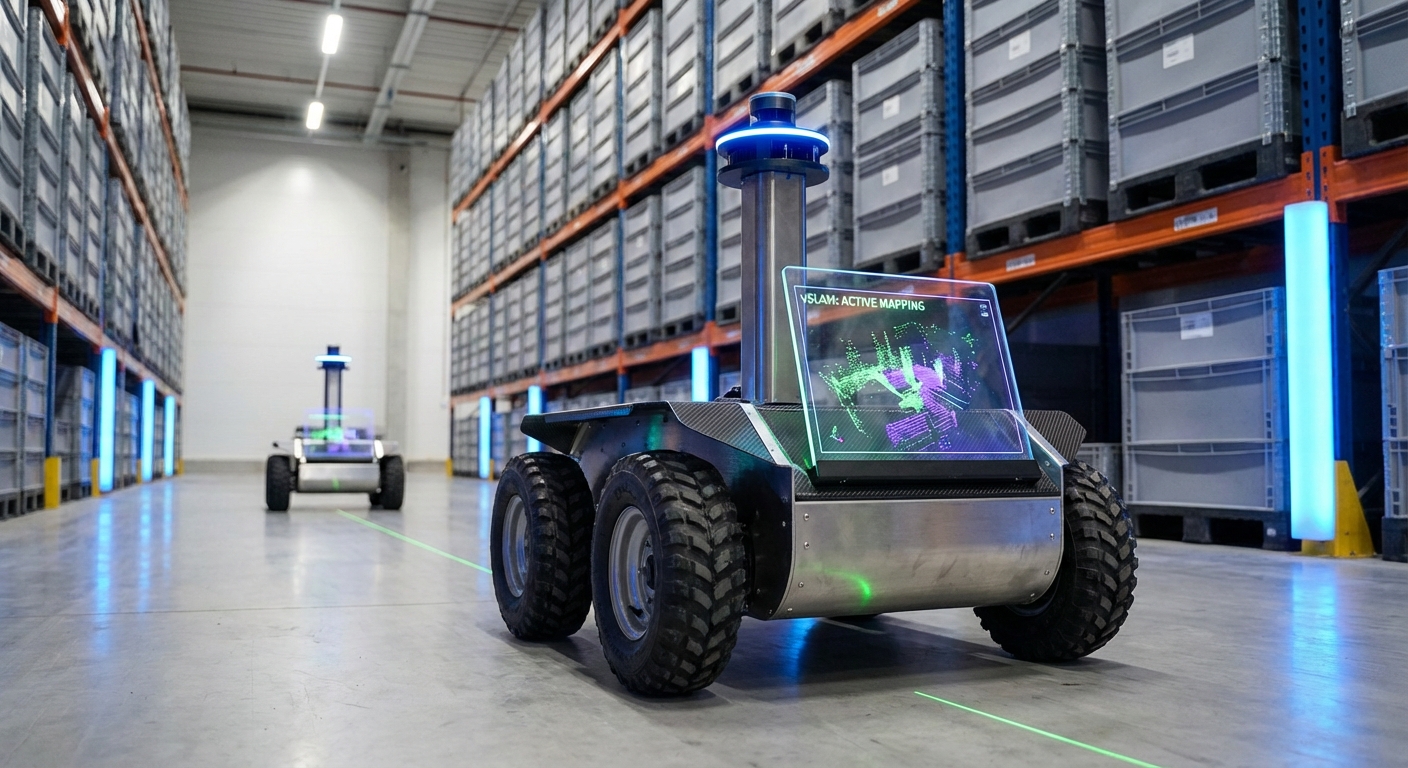

Simultaneous Localization and Mapping using visual sensors. vSLAM empowers AGVs and mobile robots to navigate complex, dynamic environments without the need for expensive physical infrastructure or GPS, replicating human-like spatial awareness.
_hero.png)
Core Concepts
Feature Extraction
The process of identifying distinct points of interest (corners, edges, blobs) in an image. These "features" act as anchors that the robot tracks across frames to calculate movement.
Loop Closure
Critical for correcting drift, loop closure occurs when the robot recognizes a previously visited location. This allows the system to snap the map back into alignment and refine the trajectory.
Visual Odometry
The incremental estimation of the robot's position and orientation changes by analyzing the motion of visual features between consecutive camera frames.
Dense vs. Sparse Mapping
Sparse maps only store feature points for navigation, while dense maps reconstruct the entire geometry (3D mesh) of the environment, useful for obstacle avoidance and detailed path planning.
Sensor Fusion
vSLAM often combines camera data with IMU (Inertial Measurement Unit) or wheel odometry. This makes the system robust against rapid movements or temporary camera occlusion.
Bundle Adjustment
An optimization technique that refines the 3D coordinates of the scene geometry and the parameters of the relative motion to minimize reprojection errors across all images.
How It Works

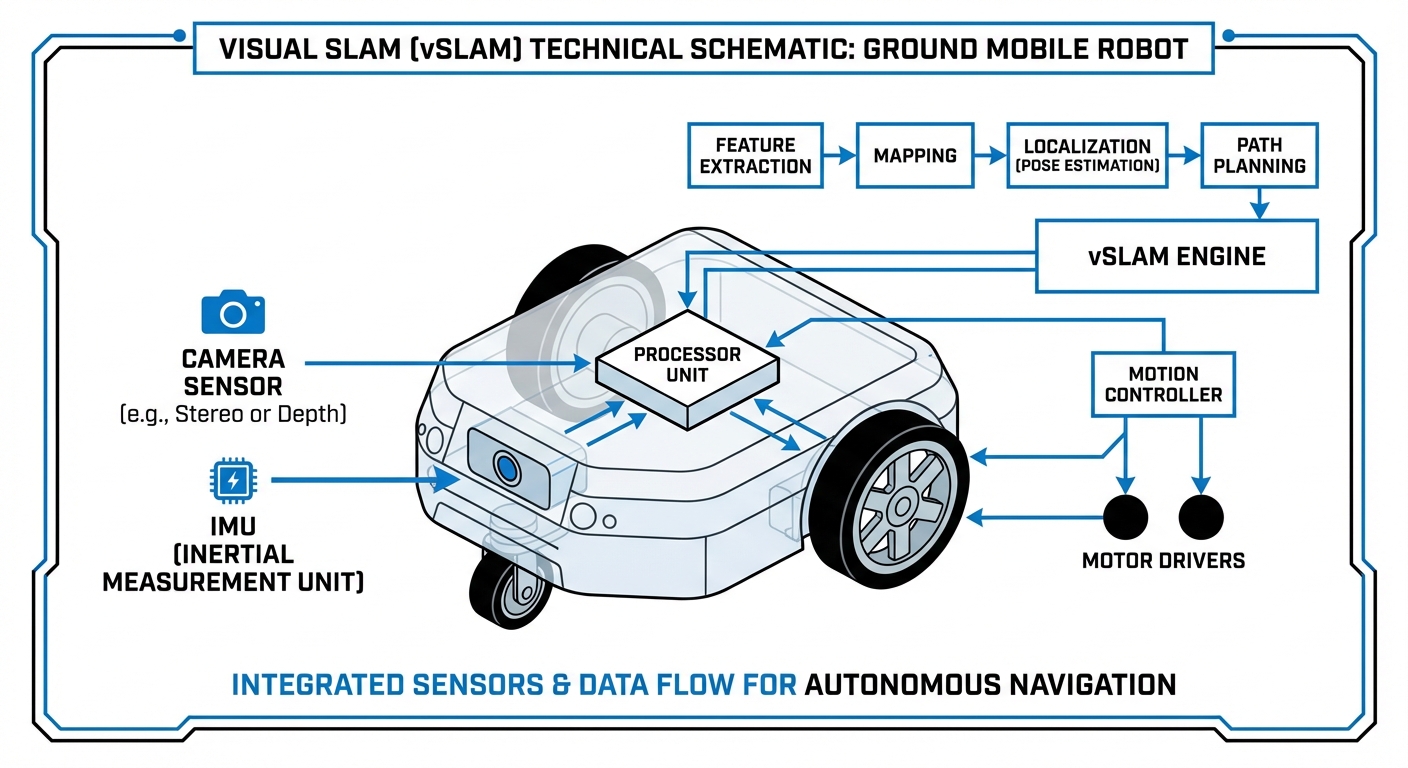

Visual SLAM operates by treating the camera as the primary sensor for spatial understanding. Unlike LiDAR, which measures distance directly via laser time-of-flight, vSLAM infers depth and structure through parallax and feature tracking.
The process begins with the Front-End , which processes the raw video feed to extract "key points" from the environment. As the robot moves, these points shift in the image frame. By triangulating these shifts, the algorithm estimates the robot's motion vector (visual odometry).
Simultaneously, the Back-End optimization engine builds a consistent map. It looks for "loop closures"—recognizing previously visited areas—to correct the accumulated drift errors inherent in dead-reckoning navigation.
The result is a 6-DoF (Degrees of Freedom) pose estimation that allows the AGV to know exactly where it is ($x, y, z$) and how it is oriented ($roll, pitch, yaw$) in real-time.
_diagram.png)
Real-World Applications
Dynamic Warehousing
AGVs utilizing vSLAM can adapt to constantly changing layouts where pallets and goods are moved frequently. Unlike magnetic strips, vSLAM robots don't require floor installations and can re-route instantly around temporary obstacles.
Hospital Logistics
In sterile environments where modifying infrastructure is difficult, vSLAM robots deliver medicine and linens. They use ceiling landmarks and visual features to navigate long corridors and recognize room numbers.
Retail Inventory Scanning
Robots scan shelves for stock levels. vSLAM allows them to navigate narrow aisles precisely while the cameras simultaneously capture inventory data, serving a dual purpose of navigation and data collection.
Outdoor Navigation
While LiDAR struggles with rain or specific reflectivity, vSLAM (especially when fused with GPS) excels in last-mile delivery robots navigating sidewalks, detecting traffic lights, and identifying pedestrian paths.
Frequently Asked Questions
What is the main difference between vSLAM and LiDAR SLAM?
The primary difference lies in the sensor used. LiDAR uses laser pulses to measure distance directly, providing high-precision geometry even in the dark but lacking color information. vSLAM uses cameras, which provide rich texture and semantic information (like reading signs) and are generally more cost-effective, though they require more computational power to infer depth.
How does vSLAM handle low-light or dark environments?
Pure visual SLAM struggles in total darkness because cameras need light to detect features. However, this is mitigated by using active infrared cameras (like in RGB-D sensors) which project their own pattern, or by fusing the camera data with LiDAR or IMU sensors to maintain localization during lighting outages.
What is the difference between Monocular, Stereo, and RGB-D vSLAM?
Monocular uses a single camera and cannot determine absolute scale without movement (IMU fusion helps). Stereo uses two cameras to calculate depth via triangulation, similar to human eyes, providing scale instantly. RGB-D adds an active depth sensor (structured light or Time-of-Flight) for dense depth maps, ideal for indoor environments.
Does vSLAM require a GPU?
Generally, yes, or a powerful CPU. Processing video feeds, extracting features, and optimizing the map in real-time is computationally intensive. Modern embedded computers like NVIDIA Jetson are commonly used to handle the parallel processing requirements of vSLAM algorithms alongside other robot tasks.
What happens if the environment has no texture (e.g., blank white walls)?
This is a classic failure case for vSLAM known as the "textureless region" problem. Without distinct visual features, the algorithm cannot track motion. This is resolved by using visual-inertial odometry (VIO) which relies on the IMU during these gaps, or by using active depth sensors that project a texture pattern onto the wall.
How accurate is Visual SLAM compared to magnetic tape or QR codes?
Magnetic tape and QR codes (grid navigation) offer millimeter-level precision but are inflexible. vSLAM typically achieves centimeter-level accuracy (2-5cm), which is sufficient for most AMR applications. If higher precision is needed for docking, robots often switch to a secondary short-range alignment method.
Can vSLAM handle dynamic environments with moving people?
Standard SLAM assumes a static world. However, modern "robust" vSLAM algorithms filter out moving objects (like people or forklifts) by detecting features that move differently than the background. By ignoring these dynamic features during the mapping process, the map remains stable.
What is the "Kidnapped Robot Problem"?
This occurs when a robot is physically picked up and moved to a new location without its sensors knowing. A good vSLAM system must perform "global relocalization" by scanning the new view, matching it against the saved map database, and determining its new position without restarting the system.
Why is Loop Closure important?
Dead-reckoning errors accumulate over time; a small angle error at the start leads to a huge position error after 100 meters. Loop closure detects when the robot returns to a known spot, calculates the error accumulation, and mathematically "bends" the entire trajectory path to correct the map consistency.
Is vSLAM cost-effective for small fleets?
Yes. While development is complex, the hardware is cheap. Professional cameras cost significantly less than industrial LiDAR scanners. For fleets, this reduces the per-unit BOM (Bill of Materials) cost, making vSLAM highly attractive for mass-deployed AGVs and service robots.
How often does the map need to be updated?
In vSLAM, the map is often "lifelong." The system can be configured to update the map continuously (adding new features and removing old ones) as the environment changes. This allows the AGV to adapt to moved shelves or renovations without needing a manual re-mapping run.
What are the privacy concerns with vSLAM?
Since vSLAM uses cameras, it theoretically captures faces and sensitive data. However, most industrial vSLAM systems process data "on the edge" and only store a sparse point cloud (geometric feature points) rather than saving video footage. This abstraction usually renders the data unrecognizable as images.
