Vector Field Histogram (VFH)
A robust real-time obstacle avoidance algorithm that enables Autonomous Guided Vehicles (AGVs) to navigate complex, cluttered environments smoothly. VFH bridges the gap between sensor data and steering commands to maintain continuous motion without stopping.
_hero.png)
Core Concepts
Cartesian Histogram Grid
The robot creates a two-dimensional Cartesian grid of the immediate environment, where each cell holds a probability value representing obstacle density based on sensor readings.
Polar Histogram
The 2D grid is reduced to a 1D polar histogram around the robot. This calculates obstacle density for specific angular sectors, simplifying the decision space.
Active Window
VFH only considers a specific square window around the robot's current position (e.g., 3m x 3m), ensuring computational efficiency for real-time processing.
Thresholding
The algorithm applies threshold values to the polar histogram to determine which angular sectors are "blocked" (high obstacle density) and which are "candidate valleys" (free space).
Target Heading
VFH calculates the steering direction by selecting the candidate valley closest to the target vector, balancing the need to avoid obstacles with the desire to reach the goal.
Data Smoothing
Before decision making, the histogram data is smoothed to filter out sensor noise, preventing erratic steering behaviors and ensuring fluid motion.

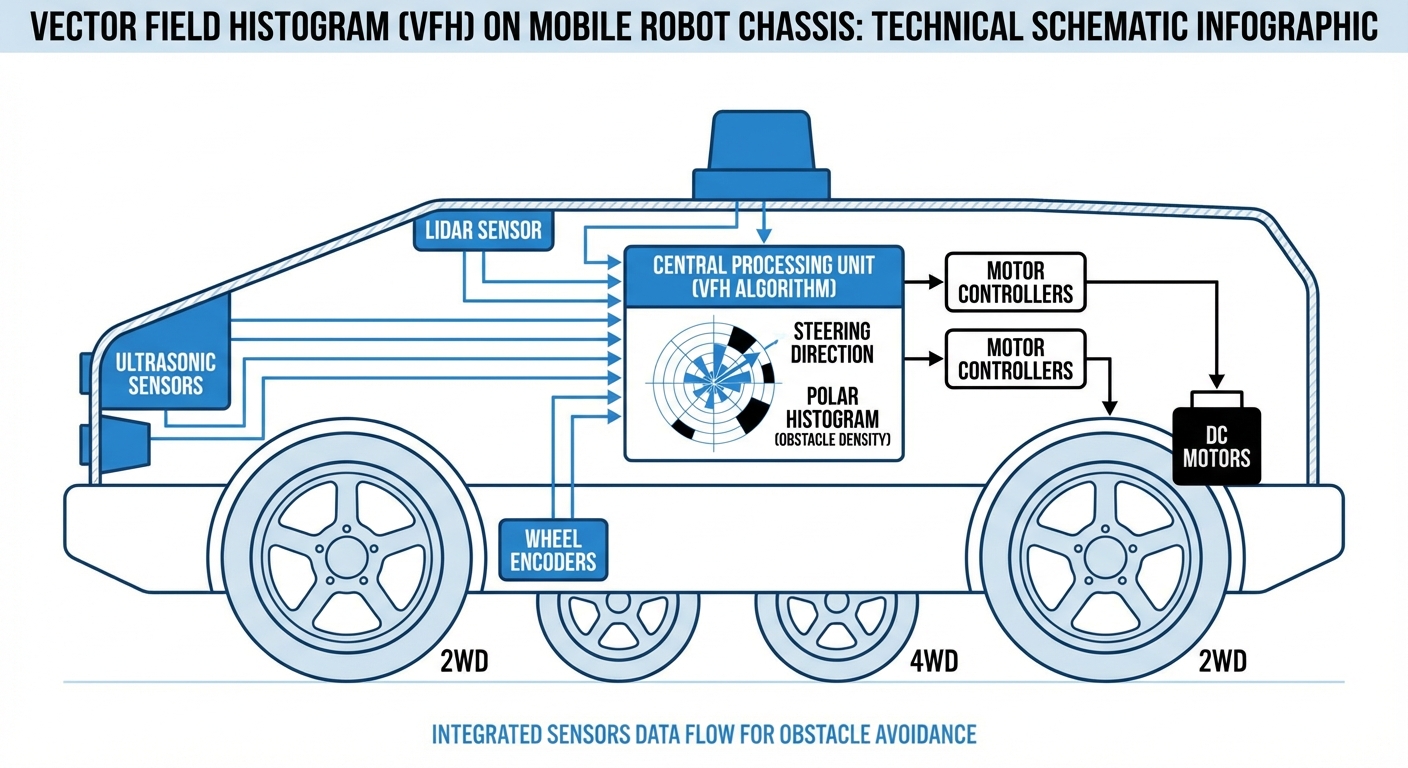

How It Works: From Grid to Motion
The Vector Field Histogram method operates in a two-stage process that overcomes the limitations of traditional potential field methods. First, it builds a Cartesian Histogram Grid . As the robot moves, range sensors (like LiDAR or Sonar) continuously update this map, incrementing cell values where obstacles are detected.
Next, this 2D data is transformed into a 1D Polar Histogram relative to the robot's center. This represents the "obstacle density" in every direction (usually in 5-degree sectors). Valleys in this histogram represent open pathways.
Finally, the algorithm selects the steering direction that aligns best with the target destination while passing through a "valley" wide enough for the robot. This results in smooth, oscillatory-free navigation even in narrow corridors or through doorways.
_diagram.png)
Real-World Applications
High-Throughput Warehousing
AGVs utilizing VFH can maintain higher speeds in warehouse aisles. Because the algorithm processes data locally and rapidly, robots don't need to stop and recalculate paths when encountering unexpected pallets or human workers.
Healthcare Logistics
In hospital corridors, delivery robots navigate around gurneys, wheelchairs, and walking patients. VFH's smoothing capabilities ensure the robot's movement is predictable and non-threatening to people nearby.
Flexible Manufacturing
In Industry 4.0 factories where layouts change frequently, VFH allows mobile platforms to adapt instantly without needing a full map re-upload, navigating around temporary workstations and machinery.
Crowded Public Spaces
Cleaning and security robots in malls or airports use VFH to filter out the "noise" of moving crowds, identifying clear gaps to navigate through density without getting stuck in local minima.
Frequently Asked Questions
What is the main advantage of VFH over Potential Field methods?
Potential Field methods often trap robots in "local minima" (getting stuck in U-shaped obstacles) and cause oscillatory movement in narrow corridors. VFH solves this by using a statistical history (histogram) of the environment, allowing the robot to "see" the gap direction clearly and maintain a stable path through narrow openings.
Does VFH handle the physical size of the robot?
The original VFH treats the robot as a point, which can be risky for wide AGVs. However, variations like VFH+ and VFH* explicitly account for the robot's kinematics and physical width by masking out sectors in the polar histogram that, while technically open, are too narrow for the vehicle to fit through.
What sensors are required to implement VFH?
VFH is sensor-agnostic but requires range data. Common setups include 2D LiDAR scanners, ultrasonic (sonar) arrays, or depth cameras (RGB-D). The algorithm aggregates this data into the Cartesian grid, so higher resolution sensors like LiDAR generally yield smoother performance than sparse sonar arrays.
Is VFH a global path planner?
No, VFH is a local obstacle avoidance algorithm (reactive navigation). It handles immediate steering to avoid collisions. For navigating from one side of a warehouse to another, VFH works in tandem with a global planner (like A* or Dijkstra) which provides the general target direction.
How computationally expensive is VFH?
VFH is highly efficient. Because it only processes a small "active window" around the robot (e.g., 30x30 cells) rather than the entire map, it runs easily in real-time on standard embedded processors found in industrial AGVs, making it suitable for high-speed applications.
Can VFH handle moving obstacles (people/forklifts)?
Yes. Since the histogram grid is updated continuously (often 10+ times per second), VFH reacts dynamically to moving objects. If a person steps in front of the robot, the corresponding sector in the polar histogram instantly reflects high density, prompting an immediate steering adjustment.
What is the "active window" in VFH?
The active window is a square subset of the histogram grid centered on the robot. Only obstacle data within this window influences the current steering command. This ensures that distant obstacles, which are not immediately relevant, do not affect local maneuvering, saving processing power.
What happens if the robot gets trapped in a cul-de-sac?
Like most local planners, pure VFH can get stuck in deep U-shaped traps if the target is directly behind the wall. Standard implementation protocols detect this state (zero velocity or oscillation) and trigger a recovery behavior or request a new path from the global planner.
How does VFH decide between two equal paths?
VFH uses a cost function that weighs the alignment with the target direction, the difference from the current wheel orientation, and the difference from the previous direction. This ensures the robot prefers paths that lead to the goal while minimizing drastic steering changes.
Is VFH suitable for outdoor terrain?
VFH assumes a flat 2D plane. For outdoor robotics on uneven terrain, VFH must be adapted to account for "negative obstacles" (ditches) and traversability analysis, or the sensor data must be pre-processed to project 3D obstacles onto the 2D grid effectively.
What is the difference between VFH and VFH+?
VFH+ is an enhancement that reduces parameter tuning sensitivity and accounts for robot trajectory dynamics (turning radius). It converts the polar histogram into a binary polar histogram using hysteresis thresholds, providing smoother motion and better handling of the robot's physical width.
