ROS 2 Navigation Stack (Nav2)
The industry-standard autonomous navigation framework for mobile robotics. Nav2 transforms raw sensor data into intelligent, collision-free movement, empowering AGVs to navigate complex, dynamic environments with production-grade reliability.
_hero.png)
Core Concepts
Behavior Trees
Nav2 uses Behavior Trees to orchestrate complex tasks. This logic flow determines how the robot reacts to failures, recoveries, and state changes dynamically.
Costmaps
2D grids representing the environment. Global costmaps are used for long-term planning, while rolling local costmaps handle immediate obstacle avoidance.
Planners & Controllers
The Planner calculates the optimal path from A to B (e.g., A* or Dijkstra), while the Controller computes velocity commands to follow that path smoothly.
Lifecycle Management
Nodes in Nav2 utilize ROS 2 Lifecycle management, ensuring deterministic startup, configuration, and shutdown sequences for industrial safety.
Recoveries
Automated behaviors triggered when the robot is stuck. Examples include backing up, spinning in place, or clearing the costmap to re-evaluate the path.
Localization (AMCL)
Uses a particle filter to track the robot's pose against a known map. Nav2 integrates tightly with AMCL to ensure the robot always knows where it is.

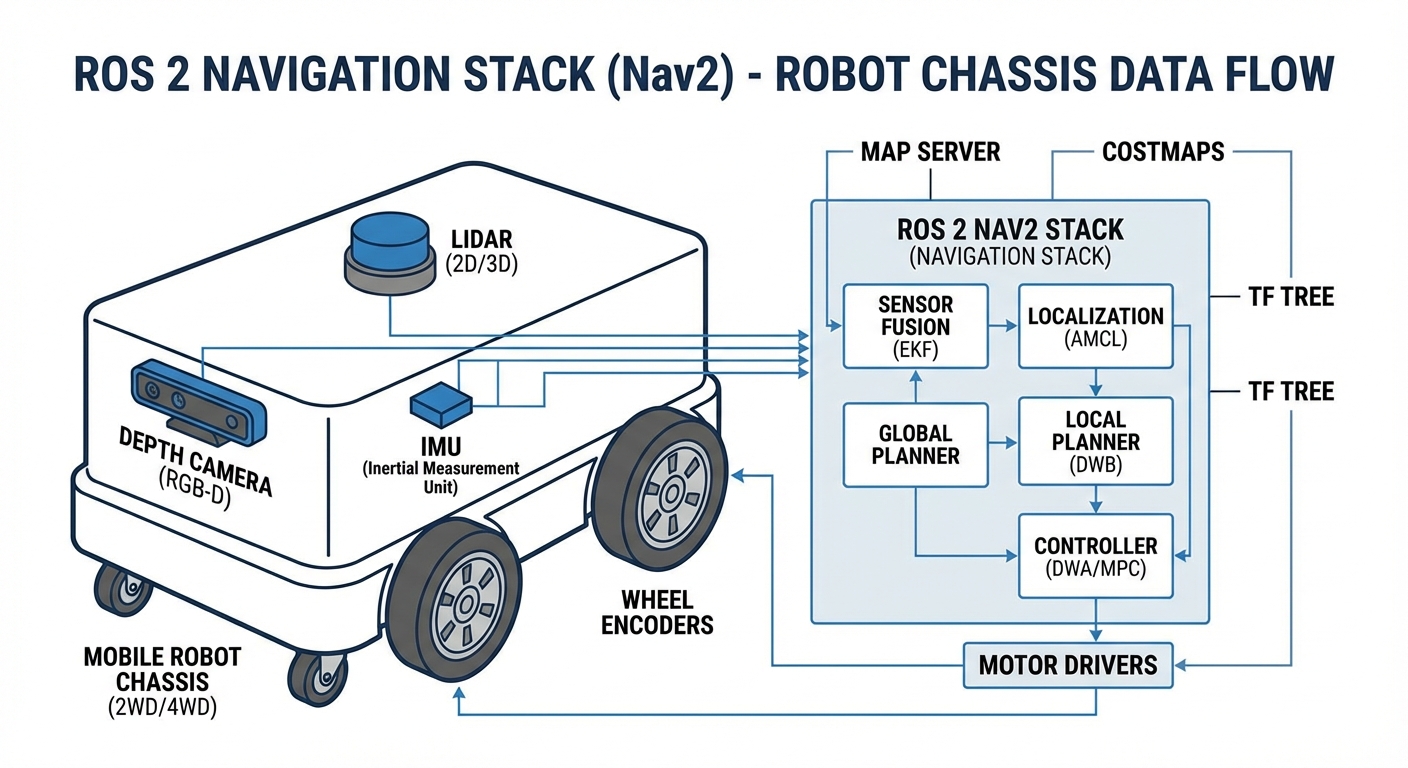

How Nav2 Works
Nav2 operates as a modular pipeline. It begins with Perception , where LIDAR, depth cameras, and sonar sensors populate the costmaps. These maps define safe traversable space and mark static or dynamic obstacles (like humans or other AGVs).
Once a goal pose is received, the Global Planner computes the most efficient route. Simultaneously, the Local Planner (Controller) generates velocity commands (Twist messages) to keep the robot on that path while reacting to immediate changes in the environment.
If the robot encounters a blockage, the Behavior Tree server takes over, executing recovery behaviors to free the robot or requesting a new plan, ensuring continuous autonomous operation without human intervention.
_diagram.png)
Real-World Applications
Warehouse Intralogistics
Nav2 powers fleets of Autonomous Mobile Robots (AMRs) that transport pallets and bins. Its dynamic obstacle avoidance is crucial in busy aisles shared with human workers and forklifts.
Healthcare Delivery
Service robots in hospitals utilize Nav2 to deliver medications and linens. The stack's ability to define "keep-out zones" ensures robots stay out of sterile or restricted areas.
Security & Patrol
Outdoor and indoor security robots use Nav2's waypoint following capabilities to perform consistent patrol loops, using recovery behaviors to handle uneven terrain.
Retail Floor Cleaning
Industrial scrubbers rely on Nav2's complete coverage path planning plugins to ensure 100% of a floor area is cleaned efficiently while avoiding shoppers.
Frequently Asked Questions
How does Nav2 differ from the ROS 1 Navigation Stack?
Nav2 is a complete rewrite built on ROS 2 technologies. It introduces Behavior Trees for logic flow, managed Lifecycle Nodes for better system stability, and a modular architecture that allows you to swap out planners, controllers, and recovery behaviors via plugins easily.
Can Nav2 handle dynamic obstacles like walking humans?
Yes. The local costmap updates in real-time using sensor data to mark moving objects as obstacles. Controllers (like DWB or MPPI) re-compute velocity trajectories multiple times per second to avoid these dynamic obstacles while attempting to reach the goal.
Is Nav2 suitable for outdoor GPS-based navigation?
Absolutely. While traditionally used for indoor SLAM, Nav2 supports GPS navigation through the
nav2_waypoint_follower
and GPS-enabled localization plugins. It can handle large-scale outdoor environments by utilizing proper map servers and coordinate transforms.
What are the hardware requirements for running Nav2?
It depends on the robot's speed and sensor load. For a basic setup with 2D LIDAR, a Raspberry Pi 4 is sufficient. However, for industrial AGVs using depth cameras, 3D LIDAR, and complex planners (like MPPI), an Intel NUC or NVIDIA Jetson device is recommended to ensure low-latency path planning.
How difficult is it to customize the robot's behavior?
Nav2 is highly customizable via XML-based Behavior Trees. You can graphically edit these trees (using Groot) to change how the robot behaves—for example, making it retry planning 3 times before backing up, or calling a custom service when a door is detected.
Does Nav2 support multi-robot fleet management?
Nav2 focuses on the navigation of a single robot. For multi-robot coordination (traffic management, task allocation), Nav2 is designed to integrate seamlessly with fleet management systems like Open-RMF (Robotics Middleware Framework).
What happens if the robot gets stuck in a narrow corridor?
Nav2 includes recovery behaviors. If the planner fails, the robot can execute sequences like clearing the costmap (in case of sensor noise), spinning to refine localization, or backing up. You can also tune the "inflation radius" to allow the robot to pass closer to walls in narrow spaces.
Can I use Nav2 without a pre-existing map?
Yes, this is known as SLAM (Simultaneous Localization and Mapping). You can run a SLAM node (like SLAM Toolbox) alongside Nav2 to build the map in real-time while the robot navigates through unexplored areas.
What types of drive trains does Nav2 support?
Nav2 supports Differential Drive, Omnidirectional (Mecanum), and Ackerman (Car-like) steering. Specific controllers like the Regulated Pure Pursuit Controller are designed specifically for Ackerman vehicles used in logistics.
How do I debug navigation issues in Nav2?
Standard tools include RViz for visualizing costmaps, plans, and sensor data. Since Nav2 uses ROS 2 actions, you can also use CLI tools to monitor action feedback. The Groot application is excellent for visualizing the real-time status of the Behavior Tree execution.
Is Nav2 production-ready for industrial use?
Yes, Nav2 is currently deployed in thousands of commercial robots worldwide. It is maintained by a dedicated working group and offers high test coverage, documentation, and stability required for enterprise-grade robotics solutions.
Can I write my own plugins for Nav2?
Yes, Nav2 is architected around plugins. You can write custom Global Planners, Controllers (Local Planners), Behavior Tree nodes, and Costmap Layers in C++ and load them at runtime via the configuration file without recompiling the core stack.
