Power Distribution Boards (PDB)
The central nervous system of modern mobile robotics. PDBs efficiently route energy from high-capacity batteries to delicate sensors and powerful drive motors, ensuring your AGVs operate with maximum reliability and safety.
_hero.png)
Core Concepts
Voltage Regulation
PDBs incorporate BECs (Battery Eliminator Circuits) to step down high battery voltage to stable 5V or 12V lines for logic boards and sensors.
Current Sensing
Integrated shunt resistors or Hall effect sensors monitor amp draw in real-time, allowing the robot to track energy consumption and detect stalls.
Circuit Protection
Essential safety features including physical fuses, e-fuses, and reverse polarity protection prevent catastrophic damage to expensive components.
Power Rails
Distinct physical pathways separate "noisy" high-current power destined for motors from "clean" filtered power needed for LiDAR and cameras.
Thermal Management
Thick copper traces (2oz or more) and aluminum heatsinks dissipate the immense heat generated when passing 100A+ of current.
Signal Passthrough
Modern PDBs often act as hubs, routing control signals (PWM/CAN bus) from the flight controller or computer to the ESCs alongside power.

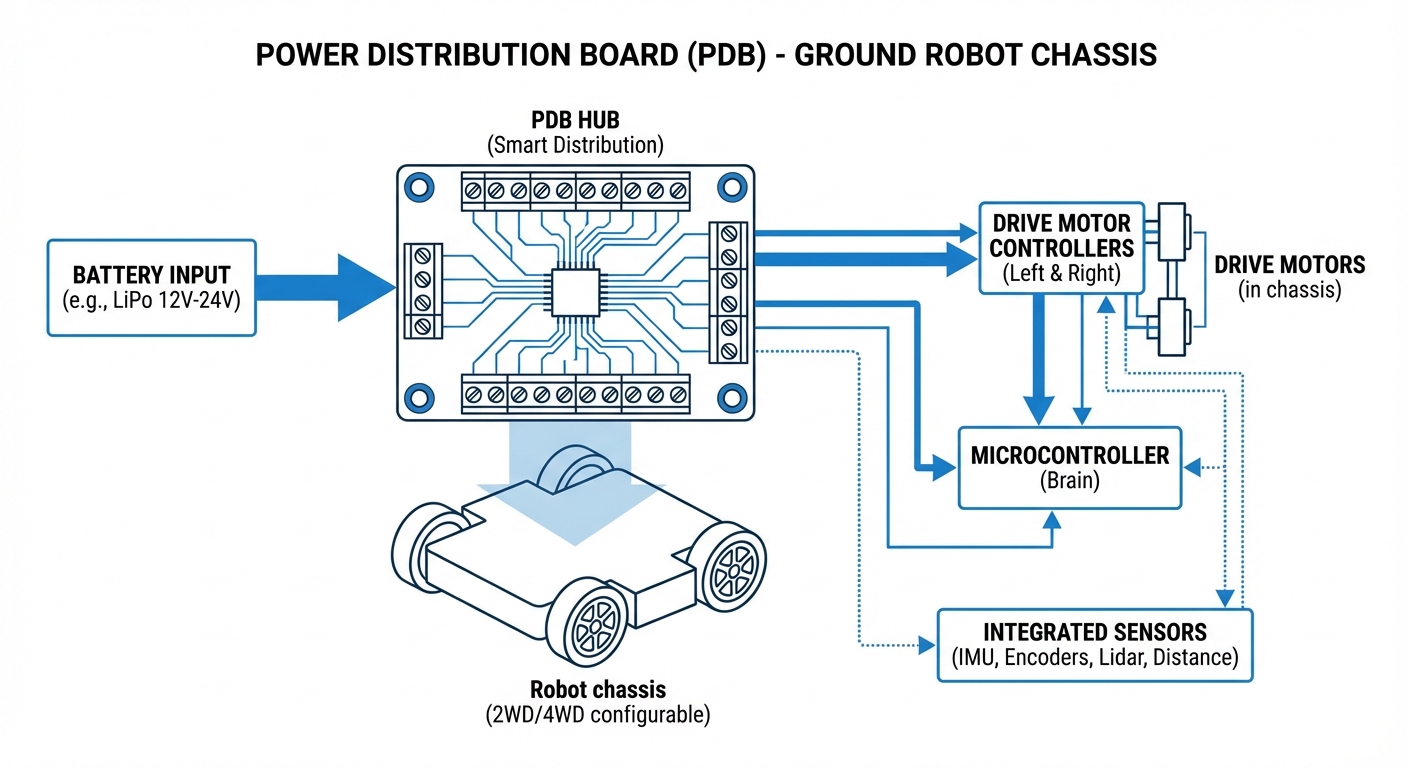

How It Works: The Power Architecture
At the heart of every Autonomous Guided Vehicle (AGV) lies the challenge of managing diverse power requirements. The battery typically provides a raw, high voltage (e.g., 24V or 48V) which is suitable for propulsion but destructive to computing units.
The Power Distribution Board acts as the intermediary. It takes the main battery input and splits it into multiple channels. High-amperage traces route raw power directly to the Electronic Speed Controllers (ESCs) for the motors. Simultaneously, on-board DC-DC converters step down the voltage to stable 5V, 12V, or 19V outputs.
Crucially, the PDB includes LC filters to "clean" the electrical noise generated by the motors. Without this filtration, voltage spikes from rapid acceleration could crash the onboard navigation computer or corrupt sensor data, rendering the robot blind.
_diagram.png)
Real-World Applications
Warehouse Logistics AMRs
Heavy-duty PDBs capable of sustaining 200A+ loads are used in shelf-lifting robots, managing the surge currents required when lifting payloads of up to 1000kg.
Last-Mile Delivery Rovers
Compact PDBs with integrated weatherproofing distribute power to six-wheel drive systems while providing clean, regulated power for GPS and LTE modules.
Agricultural Robotics
Used in crop-spraying and monitoring robots, these PDBs feature redundant power rails to ensure that even if one circuit fails, the robot can safely return to base.
Hospital Service Robots
High-precision PDBs ensure ultra-stable voltage with zero interference for medical delivery robots operating near sensitive diagnostic equipment.
Frequently Asked Questions
What is the difference between a PDB and a BMS (Battery Management System)?
A BMS protects the battery itself (monitoring individual cell voltages and preventing over-discharge), while a PDB distributes that power to the rest of the robot. The BMS sits "inside" the battery pack, whereas the PDB sits between the battery connector and the robot's components.
How do I choose the right amperage rating for my PDB?
Calculate the maximum continuous current draw of all your motors combined at full load, then add 20% for safety. For example, if you have 4 motors drawing 20A each (80A total), you should select a PDB rated for at least 100A continuous current.
What is an "Active" PDB versus a "Passive" PDB?
A passive PDB is simply a conductive board that splits connections. An active PDB includes components like voltage regulators (BECs), current sensors, and OSD (On-Screen Display) chips to process power and data actively.
Why do my sensors glitch when the motors spin up?
This is likely due to electrical noise or voltage sag. A high-quality PDB with LC filters and dedicated low-noise BECs isolates the sensor power rails from the dirty power of the motor rails to prevent this interference.
Does a PDB offer short-circuit protection?
Most basic PDBs do not have built-in short circuit protection for the main rails; they rely on the battery fuse. However, advanced smart PDBs often feature e-fuses or polyfuses on the 5V/12V accessory rails to protect peripheral devices.
Can I solder wires directly to the PDB?
Yes, direct soldering is often preferred in robotics for vibration resistance and lower resistance connections. However, connectorized PDBs (using XT60 or JST connectors) are better for prototyping or systems requiring frequent maintenance.
What is the benefit of a Dual-BEC PDB?
A Dual-BEC board provides two different voltage levels, typically 5V for the microcontroller/receiver and 12V for video transmitters or LiDAR. This eliminates the need for external voltage regulators, saving space and weight.
How does a PDB handle thermal dissipation?
PDBs use thick copper layers (2oz, 3oz, or 4oz) to reduce resistance and generate less heat. They are often designed with large ground planes and may be mounted to the robot's aluminum chassis to act as a heat sink.
Can I use a drone PDB for a ground robot (AGV)?
Yes, but be careful with thermal limits. Drones rely on prop wash (airflow) for cooling. A ground robot inside a sealed enclosure has less airflow, so you may need to derate the PDB or add a cooling fan.
What happens if I reverse the polarity on input?
Without specific reverse polarity protection (like a diode or MOSFET circuit), connecting the battery backwards will instantly destroy the PDB and likely any connected electronics. Always check polarity before connecting.
Do PDBs communicate with ROS (Robot Operating System)?
Smart PDBs can. They communicate via I2C, UART, or CAN bus to send voltage and current data to the main computer. ROS nodes can then read this data to publish battery state topics and trigger low-battery behaviors.
How does wire gauge impact PDB performance?
Using wire that is too thin for the input or output leads acts as a bottleneck, causing voltage drop and excess heat. Always match the AWG of your wires to the maximum current rating of the PDB pads.
