Point Cloud Processing (PCL)
Unlock the third dimension for your autonomous fleet. Point Cloud Processing transforms raw LiDAR data into precise, actionable 3D maps, enabling AGVs to navigate complex environments with sub-centimeter accuracy.
_hero.png)
Core Concepts
Voxel Grid Filtering
Downsamples massive 3D datasets by averaging points within a 3D grid. This significantly reduces computational load while preserving the structural integrity of the environment.
PassThrough Filters
Essential for region of interest (ROI) selection. Robots instantly clip data beyond specific X, Y, or Z coordinates to focus only on relevant navigation corridors.
RANSAC Segmentation
Using Random Sample Consensus to mathematically identify geometric shapes. Crucial for separating the floor plane from obstacles to determine drivable surfaces.
Euclidean Clustering
Groups nearby points into distinct clusters. This allows the robot to recognize separate entities—like a pallet, a human, or a pillar—rather than just a wall of noise.
Statistical Outlier Removal
Analyzes the distribution of point distances to remove noise caused by sensor dust, sensor glare, or measurement errors, ensuring a clean map.
ICP Registration
Iterative Closest Point algorithms align current scan data with a reference map. This is the cornerstone of robust localization, allowing the robot to know exactly where it is.
How It Works: From Sensor to Semantics
The journey begins with raw data ingestion. 3D LiDAR sensors generate millions of data points per second. Without processing, this "point cloud" is just a chaotic collection of coordinates (X, Y, Z) that is computationally expensive to handle.

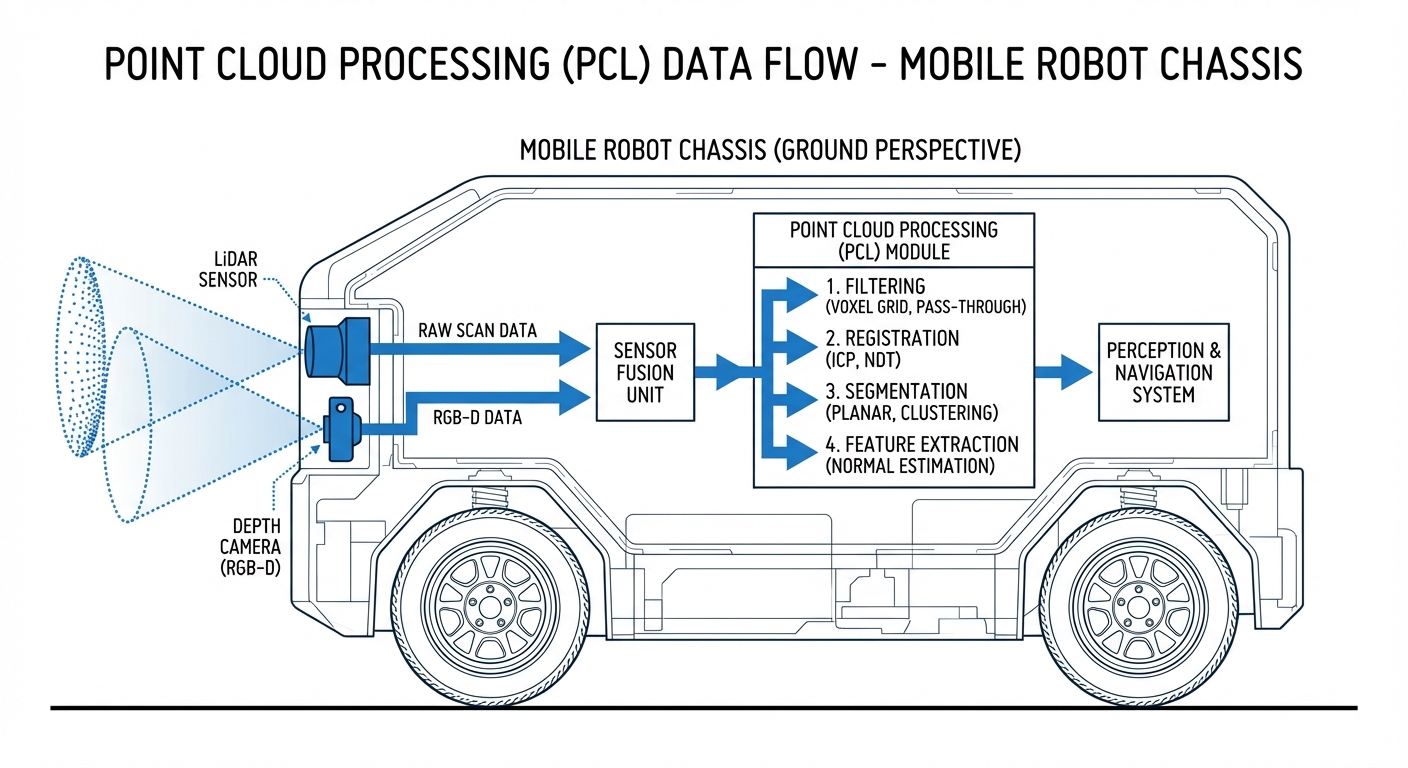

The PCL pipeline applies a cascade of filters. First, we remove noise and downsample the density. Next, we estimate surface normals to understand geometry—distinguishing flat walls from curved obstacles.
Finally, feature extraction algorithms identify key landmarks. These features are matched against a stored global map for localization, or used to build a local costmap that tells the navigation stack where it is safe to drive.
_diagram.png)
Real-World Applications
High-Bay Warehousing
AGVs use PCL to detect pallet pockets at heights of 10+ meters, ensuring precise fork insertion even when racks are slightly misaligned.
Dynamic Manufacturing Floors
In environments with moving forklifts and humans, PCL allows robots to distinguish between static infrastructure and dynamic obstacles for real-time path replanning.
Outdoor Logistics
Handling uneven terrain requires advanced PCL to analyze slope gradients and surface roughness, preventing robots from attempting to traverse hazardous ground.
Object Recognition & Sorting
Mobile manipulators use clustering and segmentation to identify specific products on a conveyor belt or in a bin for autonomous picking tasks.
Frequently Asked Questions
What is the difference between 2D LiDAR and 3D Point Cloud Processing?
2D LiDAR provides a single slice of the world, useful for basic mapping on flat floors. 3D Point Cloud Processing utilizes volumetric data, allowing the robot to see overhangs, low obstacles, and complex geometries, which is essential for safe navigation in cluttered or multi-level environments.
Does PCL require a GPU to run efficiently on an AGV?
Not always, but it is highly recommended for dense data. Basic filtering (like Voxel Grids) runs well on modern CPUs (i7/ARM). However, complex segmentation or deep learning-based point cloud analysis (like PointNet) generally requires CUDA-accelerated GPUs (like NVIDIA Jetson modules) to maintain real-time performance.
How does Voxel Grid filtering improve navigation performance?
Voxel Grid filtering takes a dense cloud (e.g., 300,000 points) and approximates it with a sparse grid (e.g., 5,000 points) by calculating the centroid of points within each cube (voxel). This drastically reduces memory usage and processing time for SLAM algorithms without losing the overall shape of the environment.
What is RANSAC and why is it used in robotics PCL?
RANdom SAmple Consensus (RANSAC) is an iterative method used to estimate parameters of a mathematical model from a set of observed data. In robotics, it is most commonly used to detect the largest plane in a scene (usually the floor). By identifying and subtracting the floor, the robot can isolate obstacles effectively.
How do you handle "Ghost Points" or sensor noise in PCL?
Ghost points (mixed pixels at edges of objects) or dust can be removed using Statistical Outlier Removal filters. These filters calculate the mean distance of a point to its neighbors; points that fall outside a standard deviation threshold are considered noise and deleted from the stream.
Can PCL be used with depth cameras (RGB-D) instead of LiDAR?
Yes. Depth cameras like Intel RealSense generate point clouds similar to LiDAR. While cameras generally have a limited field of view and range compared to LiDAR, they provide dense, colorized point clouds which are excellent for object recognition and short-range obstacle avoidance.
What is the role of Normal Estimation in point clouds?
Normal estimation calculates the orientation of the surface at each point. This helps the robot understand geometry. For example, if the normal vector is vertical, it's likely the floor or a table top. If horizontal, it's likely a wall. This is critical for drivability analysis.
How does ICP (Iterative Closest Point) assist in localization?
ICP minimizes the difference between two clouds of points. In localization, it matches the live scan from the robot to a pre-built static map. It iteratively rotates and translates the live scan until it "locks" into place on the map, giving the robot its precise position.
Is PCL compatible with ROS and ROS 2?
Absolutely. The `pcl_ros` and `perception_pcl` packages are standard in the Robot Operating System ecosystem. They provide bridges to convert ROS messages (sensor_msgs/PointCloud2) into PCL data types, allowing developers to use the extensive PCL library directly in their ROS nodes.
What is Euclidean Cluster Extraction?
This is a segmentation technique based on distance. It divides an unorganized point cloud into smaller parts (clusters) based on the proximity of points. It is widely used to separate distinct objects (like a box, a person, or a robot) after the floor plane has been removed.
How much data bandwidth does a 3D LiDAR generate?
A typical 16-channel LiDAR generates roughly 300,000 points per second, while high-end 64 or 128-channel units can generate over 2 million points per second. This results in data rates ranging from 10 Mbps to over 100 Mbps, requiring Gigabit Ethernet connections and efficient PCL preprocessing.
Can PCL detect transparent objects like glass walls?
Standard LiDAR often passes through glass, causing "infinity" readings or detecting objects behind the glass. Specialized PCL algorithms are needed to detect the faint reflections or "noise" patterns characteristic of glass, or fusion with ultrasonic sensors is used to confirm the obstacle.
