Parallel Manipulators (Delta Robots)
Unlock extreme speed and precision in your automated logistics chain. While AGVs handle material transport, Delta Robots serve as the high-velocity interface for rapid pick-and-place operations, bridging the gap between mobile transit and static processing lines.
_hero.png)
Core Concepts
Parallel Kinematics
Unlike serial arms, the end-effector is connected to the base by multiple kinematic chains. This distributes the load, increases stiffness, and minimizes moving mass for rapid acceleration.
Fixed Motor Base
The heavy motors are mounted on the stationary frame, not the moving arm. This drastically reduces inertia, allowing the robot to achieve G-forces that would damage standard articulated robots.
Parallelogram Linkage
The arms utilize parallelogram linkages which constrain the movement of the end platform, keeping it purely translational (parallel to the base) without needing complex wrist joints.
Workspace Geometry
The working envelope is typically an inverted dome or cylinder. While smaller than articulated arms, it is optimized for top-down picking from AGVs or conveyor belts.
High-Speed Handshake
Synchronization is key. Delta robots rely on precise timing with mobile robots (AGVs), picking items the moment the vehicle enters the cell without requiring the AGV to fully stop.
Vision Integration
Almost all Delta systems are paired with overhead machine vision. This allows them to identify unstructured items on an AGV tray and adjust the pick path in milliseconds.
How It Works

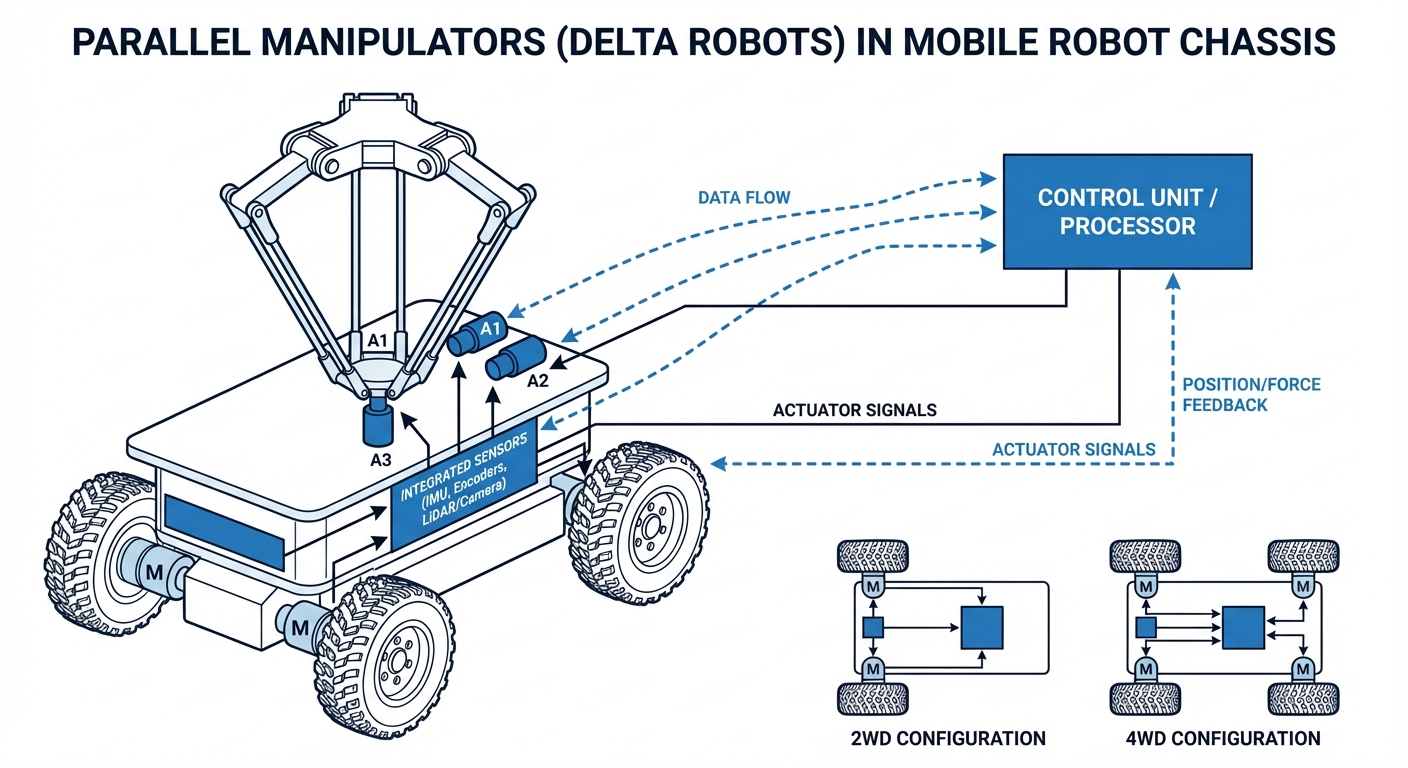

The Delta robot consists of a fixed base plate connected to a moving platform by three identical kinematic chains. Each chain is driven by a rotary servomotor located on the stationary base. The genius of the design lies in the use of parallelograms in the arms, which restrict the movement of the platform to the X, Y, and Z axes, keeping the end-effector parallel to the work surface at all times.
In an AGV context, this architecture is critical for "Goods-to-Robot" workflows. As an Autonomous Mobile Robot (AMR) delivers a payload—such as a bin of mixed parts—the Delta robot utilizes overhead cameras to map the coordinates of the target items.
Because the motors are stationary, the moving parts are incredibly lightweight carbon fiber rods. This allows the robot to accelerate up to 15G, swooping down to pick an item from the AGV and placing it onto a sorting line or another container in fractions of a second, maximizing the throughput of the mobile fleet.
_diagram.png)
Real-World Applications
High-Speed Kitting
AGVs bring pallets of bulk components to a kitting station. Delta robots rapidly pick necessary parts from the AGV and assemble them into consumer-ready kits on an outbound conveyor, replacing manual picking lines.
Pharmaceutical Sorting
In sterile environments where human presence is limited, AMRs transport vials or syringes to a Delta cell. The robot sorts and packages these delicate items with millimeter precision and zero contamination risk.
Food Packaging & QC
Mobile robots transport baked goods or raw produce. A vision-guided Delta robot identifies defects, removing rejected items from the AGV tray while simultaneously packing compliant items into shipping cartons.
Reverse Logistics (Returns)
AGVs deliver returned items to a sorting hub. Delta robots scan and segregate items into different chutes based on condition and category, drastically speeding up the restocking process.
Frequently Asked Questions
What is the primary advantage of a Delta robot over an articulated arm for AGV integration?
Speed and cycle time are the primary advantages. Delta robots can achieve 150-300 picks per minute, whereas articulated arms generally manage 60-80. For high-volume AGV throughput, a Delta robot prevents the "waiting at the dock" bottleneck that occurs with slower manipulators.
Can Delta robots be mounted directly on top of an AGV (Mobile Manipulator)?
While technically possible, it is rare due to the vibration and stability requirements of high-speed Delta operation. Usually, the Delta robot is stationary (mounted overhead), and the AGV drives underneath it. Mounting a Delta on an AGV would require a very heavy base to counteract the dynamic forces of the moving arms.
What are the payload limitations for standard Delta robots?
Delta robots are designed for light, fast loads. Standard payloads range from 1kg to 6kg. High-payload models exist that can handle up to 12-15kg, but as payload increases, speed decreases, potentially negating the main benefit of the parallel architecture.
How precise is the "handshake" between the AGV and the Delta robot?
The handshake must be extremely precise. Typically, the AGV communicates via Wi-Fi (VDA 5050 protocol or similar) to the robot controller. Optical sensors or RFID tags confirm the AGV is in the exact "pick zone" (±10mm) before the Delta robot begins its cycle to avoid collision.
Do Delta robots require a vision system to work with AGVs?
Yes, almost always. Even with precise AGV docking, the items inside the bin or on the tray may shift during transport. An overhead vision system snaps an image, calculates the new coordinates and orientation of the items, and updates the robot's trajectory in real-time.
What is the typical workspace (reach) of a Delta robot?
The workspace is usually cylindrical with a diameter between 600mm and 1600mm. Vertical reach (Z-axis) is more limited, often 200mm to 400mm. This makes them ideal for picking from flat AGV trays but poor for deep-bin picking or high-stacking applications.
Does the Delta robot handle rotation (4th axis)?
Basic Delta robots are 3-axis (X, Y, Z). However, most industrial applications add a telescopic 4th axis (theta) down the center to rotate the gripper. This is essential for orienting parts correctly before placing them, even if the AGV delivered them in a random orientation.
How does energy consumption compare to other manipulators?
Delta robots have high peak power demands during acceleration but low moving mass, meaning average consumption is reasonable. However, they require rigid mounting frames which don't consume power but add to infrastructure costs compared to collaborative arms.
Are safety fences required when using Delta robots with AGVs?
Generally, yes. Because Delta robots move at speeds invisible to the human eye, they are not "collaborative" by default. The work cell must be guarded. AGVs enter through light curtains or automatic high-speed doors that mute only for the vehicle entry.
What maintenance issues are common with these systems?
The primary wear points are the spherical joints (ball-and-socket) at the ends of the carbon fiber arms. In dusty AGV environments, these joints can degrade. Regular lubrication (if not self-lubricating) and occasional recalibration of the kinematic home position are standard maintenance tasks.
Can a Delta robot pick from a moving AGV (conveyor tracking)?
Yes, this is a high-end application known as "Conveyor Tracking." The robot controller receives encoder feedback from the AGV or a conveyor and adjusts the pick coordinates dynamically, allowing the robot to snatch an item while the AGV is still driving through the cell.
What is the "singularity" risk in Delta robots?
A singularity is a point in the workspace where the robot loses a degree of freedom or control becomes mathematically impossible (typically when arms are fully extended or folded). Modern controllers have software limits to prevent the robot from entering these zones during operation.
