Object Detection (YOLO/SSD)
Give your mobile robots the power of sight. Leveraging YOLO (You Only Look Once) and SSD (Single Shot MultiBox Detector) architectures, modern AGVs can identify obstacles, humans, and cargo with millisecond latency for safe, autonomous navigation.
_hero.png)
Core Concepts
Single-Shot Inference
Unlike two-stage detectors, YOLO and SSD process the entire image in a single pass of the neural network. This architecture allows for the high frame rates essential for moving robots.
Bounding Boxes
The algorithm predicts spatial coordinates to draw rectangular boxes around detected objects. For an AGV, this defines the "danger zone" or interaction point for a specific target.
Confidence Scores
Every detection comes with a probability score. Robots use thresholds (e.g., >85%) to decide whether to stop for a pedestrian or ignore visual noise, balancing safety and efficiency.
Class Prediction
The model doesn't just see "something"; it categorizes it. An AGV reacts differently to a "human" (slow down/stop) versus a "pallet" (approach to pick up).
Feature Extraction
Using Convolutional Neural Networks (CNNs), the system extracts patterns like edges and textures. SSD specifically uses multi-scale feature maps to detect objects of various sizes effectively.
NMS (Non-Max Suppression)
Detectors often predict multiple boxes for one object. NMS cleans this up by keeping only the most accurate box and removing overlapping duplicates, ensuring the robot sees one distinct object.

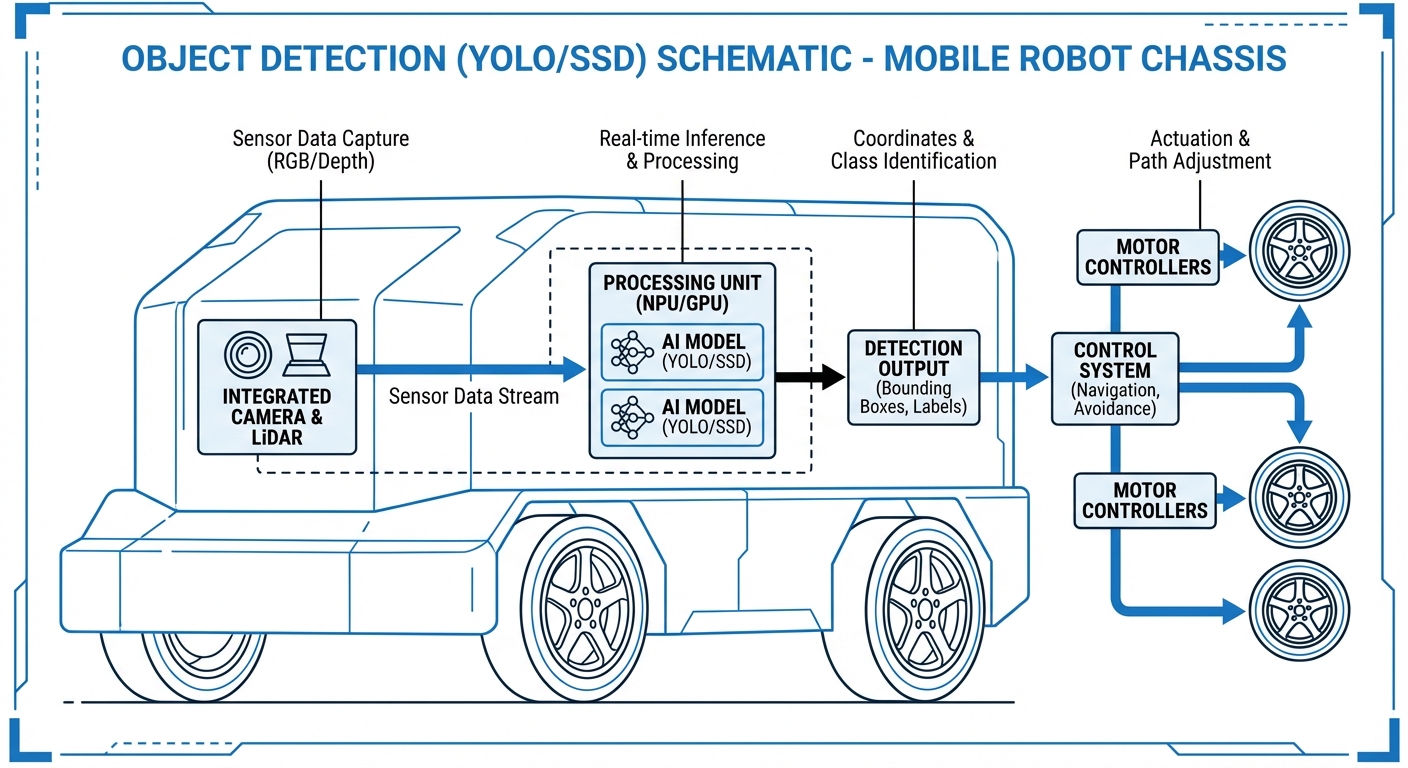

How Real-Time Vision Works
Traditional computer vision often relied on sliding windows or region proposal networks, which are computationally expensive. YOLO (You Only Look Once) revolutionized robotics by treating object detection as a single regression problem.
The input image from the AGV's camera is divided into an SxS grid. For each grid cell, the network predicts bounding boxes and class probabilities simultaneously. This parallel processing allows robots to "see" at 30 to 60 frames per second (FPS) on edge hardware like NVIDIA Jetson modules.
SSD (Single Shot Detector) improves upon this by using feature maps from different layers of the network. This allows it to detect smaller objects (like debris on a floor) that coarser grid systems might miss, providing a balance of speed and granular accuracy.
_diagram.png)
Real-World Applications
Dynamic Obstacle Avoidance
In busy warehouses, forklifts and humans move unpredictably. YOLO/SSD allows AGVs to identify these dynamic agents instantly, predict their trajectory based on class, and replan paths to avoid collisions without stopping operations completely.
Intelligent Pallet Recognition
Instead of relying solely on QR codes on the floor, robots use object detection to identify specific pallet types, racking configurations, or cargo orientations, allowing for more flexible picking and placing strategies.
Safety Gear Compliance
Surveillance robots or autonomous inspectors use these models to detect if workers in specific zones are wearing required PPE (helmets, vests) or if unauthorized personnel have entered restricted high-risk areas.
Docking & Charging Alignment
For precise docking, robots use SSD to detect visual markers on charging stations or conveyor belts. This visual confirmation provides a secondary verification layer alongside LiDAR for millimeter-perfect positioning.
Frequently Asked Questions
What is the main difference between YOLO and SSD for robotics?
YOLO generally prioritizes inference speed, making it excellent for high-speed collision avoidance. SSD is often slightly slower but performs better at detecting smaller objects due to its multi-scale feature maps. The choice depends on whether your robot needs to see tiny debris or simply avoid large humans quickly.
What hardware is required to run these models on an AGV?
Running deep learning models requires hardware accelerators. Common choices for mobile robots include the NVIDIA Jetson series (Orin, Xavier, Nano), Google Coral TPUs, or specialized AI microcontrollers. Standard CPUs are typically too slow for real-time inference at acceptable frame rates.
How does lighting affect object detection performance?
Since YOLO and SSD rely on RGB camera data, poor lighting (glare, shadows, or darkness) can significantly degrade performance. For industrial environments with variable lighting, it is best practice to augment the visual system with active illumination or sensor fusion (combining camera data with LiDAR or Radar).
Can these models detect objects they haven't been trained on?
No, standard YOLO/SSD models can only detect classes they were trained on (e.g., the COCO dataset includes people, cars, etc.). To detect custom industrial objects like specific totes or machine parts, you must perform "transfer learning" by re-training the model with a labeled dataset of your specific items.
What is the typical latency for object detection on an edge device?
On optimized edge hardware like a Jetson Orin, a "Tiny" version of YOLO can run in under 10ms (100+ FPS). Larger, more accurate models might take 30-50ms. For safety-critical AGVs moving at speed, latency should ideally stay under 30ms to allow for adequate braking distance.
How do you handle "false positives" where the robot stops for nothing?
False positives can be mitigated by increasing the "confidence threshold" (e.g., only acting if certainty is >90%) or using temporal consistency filters (requiring an object to appear in 3 consecutive frames). Fusion with LiDAR depth data also confirms if a visual detection actually has physical mass.
Does object detection replace LiDAR for navigation?
Generally, no. LiDAR is superior for precise geometric mapping and localization (SLAM) because it provides exact distance measurements. Object detection (Visual AI) complements LiDAR by providing semantic understanding—telling the robot what the obstacle is, not just that it exists.
How much power does running YOLO consume on a battery-operated robot?
Running neural networks is energy-intensive. An edge GPU can draw anywhere from 10W to 60W depending on the workload. While this is significant, it is usually a small fraction of the power consumed by the robot's drive motors, making the trade-off for intelligence worthwhile.
What is "IoU" and why does it matter?
Intersection over Union (IoU) measures the overlap between the predicted bounding box and the ground truth. In robotics, a high IoU ensures the robot accurately estimates the size and position of an obstacle. Poor IoU could lead to the robot clipping an object it thought was further away.
Can YOLO/SSD work with 3D cameras (RGB-D)?
Yes. A common technique is to run 2D detection on the RGB image to find the bounding box, and then sample the corresponding depth data from the Depth channel within that box. This gives you the X, Y, and Z coordinates of the object, effectively creating 3D object detection.
What happens if an object is partially hidden (occlusion)?
Modern detectors are reasonably robust to partial occlusion, often detecting a person even if only the upper body is visible. However, severe occlusion remains a challenge. Tracking algorithms (like DeepSORT) are often used to "remember" objects temporarily if they pass behind obstacles.
How often should the detection model be updated?
In dynamic industrial environments, "model drift" can occur if packaging changes or new equipment is introduced. It is best practice to collect "edge cases" (images where the robot failed or was uncertain), label them, and retrain the model periodically (MLOps) to maintain high accuracy.
