Modbus TCP/RTU
The universal language bridging modern autonomous mobile robots (AMRs) with established industrial infrastructure. Ensure seamless communication between fleet controllers, PLCs, and onboard peripherals with the industry's most reliable standard.
Core Concepts
Client/Server Architecture
Formerly Master/Slave. In robotics, the AGV often acts as the Client (Master), initiating requests to read sensors or write commands to PLCs (Servers/Slaves) within the facility.
RTU (Serial)

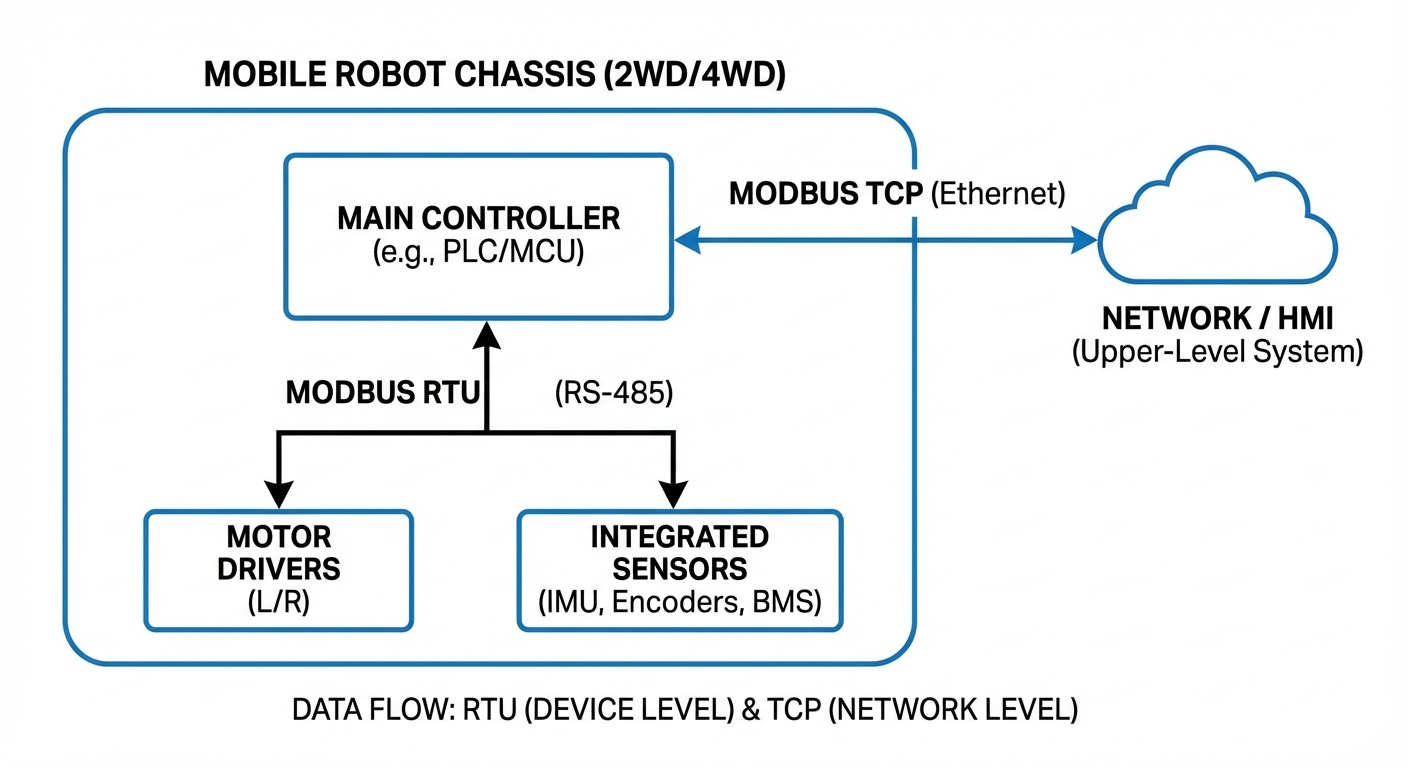

Modbus Remote Terminal Unit runs over serial lines like RS-485. It is compact and binary, ideal for internal robot components like battery management systems or lifting motors.
TCP (Ethernet)
Modbus over TCP/IP encapsulates Modbus frames in TCP packets. This allows AGVs to communicate wirelessly with central fleet managers or facility doors and elevators.
Register Maps
Data is organized into coils (bits) and registers (16-bit words). A precise register map is required to map robot status codes to values the PLC can understand.
Robustness
While not the fastest protocol, Modbus is deterministic and highly resistant to noise, making it the standard for safety-critical handshakes in noisy factory environments.
Gateway Translation
Modern AGVs often use gateways to convert internal CAN bus or Modbus RTU data into Modbus TCP for easy consumption by upper-level warehouse management systems.
How It Works: The Handshake
In a typical logistics scenario, communication reliability is paramount. Modbus serves as the "handshake" protocol between mobile robots and static infrastructure.
The AGV (Modbus TCP Client) approaches a conveyor belt. It sends a 'Write Single Register' command to the Conveyor PLC (Modbus TCP Server) indicating "Ready to Unload." The PLC reads this register, starts the belt, and updates its own status register to "Running."
This cycle of polling and writing ensures that machinery only activates when the robot is physically present and aligned, preventing cargo spills and improving safety compliance without complex custom drivers.
Real-World Applications
Automatic Door Integration
AGVs use Modbus TCP over WiFi to trigger high-speed roll-up doors in warehouses. By sending an "Open" bit to the door controller's IP address, the robot ensures a clear path before arrival, reducing braking events.
Internal BMS Monitoring
Inside the chassis, Modbus RTU (RS-485) connects the main computer to the Battery Management System. This allows the robot to monitor voltage, current, and temperature to autonomously decide when to charge.
Conveyor Handshakes
The most common industrial use case: synchronizing the AGV's roller top with a static facility conveyor. Modbus registers exchange "Ready to Receive" and "Transfer Complete" flags to ensure perfect timing.
Legacy Elevator Control
Many freight elevators lack modern APIs but possess PLC controllers. Retrofitting a Modbus TCP gateway allows AGVs to call elevators and select floors without expensive infrastructure upgrades.
Frequently Asked Questions
What is the main difference between Modbus RTU and Modbus TCP in robotics?
The primary difference lies in the physical transport layer. Modbus RTU uses serial communication (usually RS-485), making it ideal for internal, hardwired connections between the robot's PC and its sensors or motors. Modbus TCP uses Ethernet (standard network cables or WiFi), allowing the robot to communicate with external facility infrastructure like fleet managers, elevators, and doors.
Is Modbus fast enough for real-time robot navigation?
Generally, no. Modbus is designed for supervisory control and data acquisition (SCADA), typically operating in the 10ms to 100ms range. While sufficient for battery monitoring or docking handshakes, high-speed navigation loops usually require faster, low-latency protocols like CANopen or EtherCAT.
How many devices can I daisy-chain on an AGV using Modbus RTU?
The Modbus standard allows up to 247 unique addresses, but physical RS-485 limitations usually cap this at 32 devices per segment without repeaters. For a mobile robot, keeping the bus short and limiting devices to under 10 helps maintain signal integrity and reduce update latency.
Does Modbus TCP support encryption for secure fleet communication?
Standard Modbus TCP is an open text protocol with no built-in security or encryption. In modern robotics deployments, it is critical to run Modbus TCP over a secure VPN or isolate it within a dedicated VLAN to prevent unauthorized control or spoofing of robot commands.
What happens if the WiFi connection drops during a Modbus TCP operation?
Modbus TCP relies on the underlying TCP connection. If WiFi drops, the TCP socket will eventually timeout. Your robot software must implement a "watchdog" logic: if a heartbeat register isn't updated within a specific timeframe, the robot should enter a safe state or pause operations immediately.
Can I use Modbus to update the robot's firmware?
It is technically possible by writing binary data to registers, but it is highly discouraged. Modbus is not optimized for large file transfers. Protocols like FTP, SSH, or OTA (Over-The-Air) mechanisms via HTTPS are much more reliable and faster for firmware management.
Why use Modbus instead of modern protocols like ROS 2 / DDS?
Modbus is chosen for interoperability with legacy hardware. While ROS 2 is excellent for internal robot computation, most warehouse conveyor belts, doors, and charging stations utilize PLCs that only speak Modbus or PROFINET. Modbus serves as the bridge between the "smart" robot and the "dumb" infrastructure.
What are the most common registers used in AGV applications?
Most applications rely on "Holding Registers" (4xxxx) for read/write operations. Common data points include Battery Level (0-100%), X/Y Coordinates (scaled integers), Current State ID (Idle, Moving, Error), and Command IDs (Go to Charger, E-Stop).
How do I troubleshoot Modbus communication errors on a robot?
First, check the physical layer (wiring or IP connectivity). For RTU, verify baud rate, parity, and stop bits match exactly. For TCP, check port 502 availability. Tools like 'Modbus Poll' or Wireshark are essential for inspecting the raw frames and identifying exception codes.
Does Modbus consume significant CPU resources on the robot's computer?
No, Modbus is extremely lightweight. The protocol overhead is minimal, requiring very little processing power. This makes it suitable even for low-power microcontrollers handling peripheral tasks on the AGV, leaving the main CPU free for navigation and SLAM.
Can an AGV act as both a Modbus Client and Server simultaneously?
Yes. A robot can act as a Client to pull data from BMS sensors, while simultaneously acting as a Server (Slave) to expose its own status (location, battery, errors) to a central Fleet Management System. This dual-role capability is common in complex integrations.
Is termination resistance required for Modbus RTU on short robot runs?
While often skipped on very short bench tests, termination resistors (120 Ohm) at both ends of the RS-485 bus are crucial in a mobile robot environment. Electrical noise from motors and drives can cause signal reflections, leading to packet loss if proper termination is not applied.
