Lithium Ion (Li-Ion) 18650 Cells
The 18650 cell is the modular powerhouse behind modern warehouse automation, delivering high energy density and scalable voltage configurations for Autonomous Guided Vehicles (AGVs) and AMRs.
_18650_cells_hero.png)
Core Concepts
Form Factor Dimensions
The name "18650" refers strictly to its dimensions: 18mm in diameter and 65mm in length. This standardization allows for universal compatibility in modular battery packs.
High Energy Density
Li-Ion chemistry offers superior energy-to-weight ratios compared to Lead Acid or NiMH, allowing robots to run longer shifts with lighter payloads.
Nominal Voltage
A single cell operates at a nominal 3.6V or 3.7V. AGVs connect these in series (e.g., 7S, 13S) to achieve industrial 24V or 48V system requirements.
BMS Necessity
Lithium cells require a Battery Management System (BMS) to monitor individual cell voltages, preventing overcharging, deep discharge, and thermal runaway.
Cycle Life
Industrial grade 18650 cells typically offer 300 to 500 charge cycles before capacity degrades to 80%, ensuring years of reliable service in daily operations.
Discharge Rate (C-Rating)
High-drain cells are essential for robotics to handle the current spikes caused by motor startup torque and heavy lifting mechanisms.
Inside the Power Source

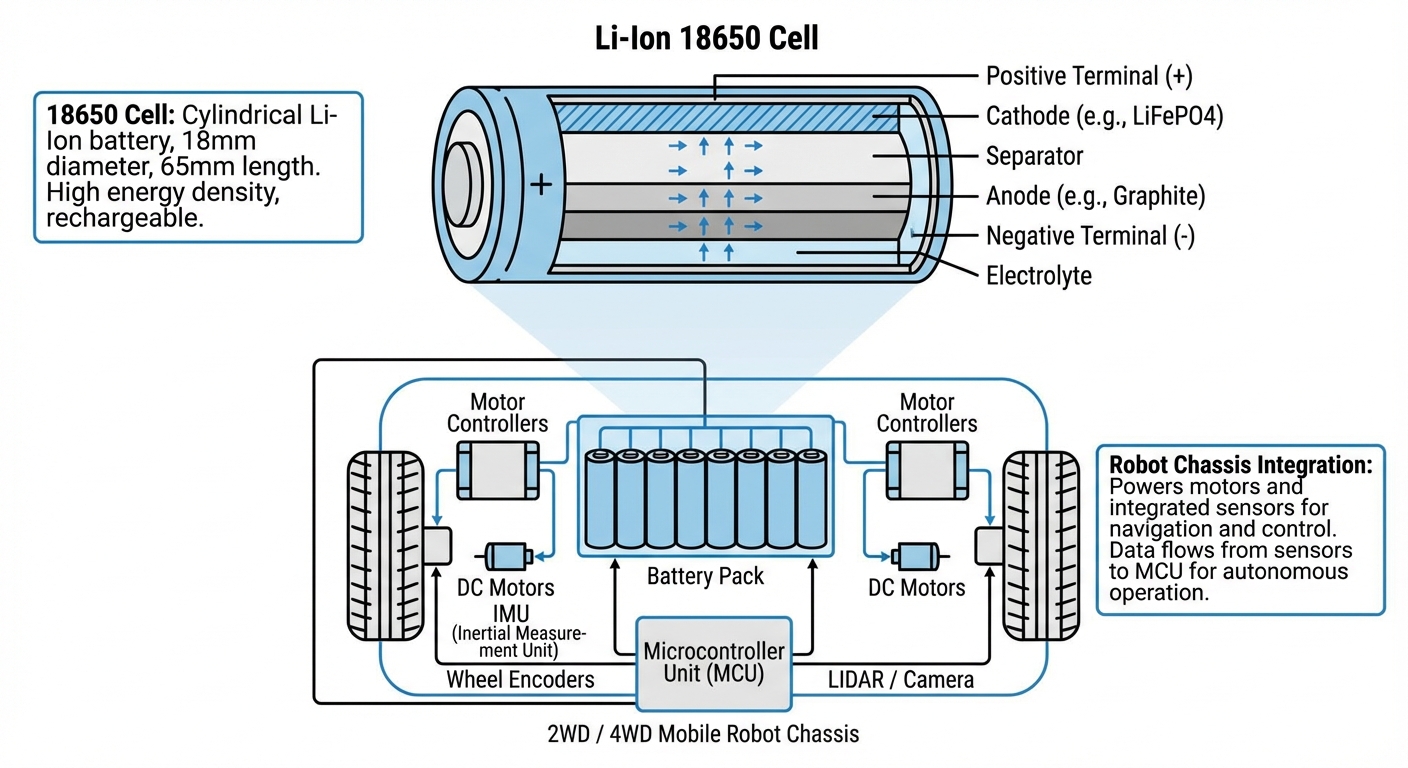

The 18650 cell utilizes a "jelly-roll" internal construction. The cathode, anode, and separator are layered and rolled into a cylinder, submerged in electrolyte, and encased in a steel shell. This design maximizes the active surface area for ion transfer within a compact footprint.
For AGV applications, individual cells are rarely used alone. They are spot-welded into packs using nickel strips. A configuration labeled 10S4P , for example, means 10 cells in series (to increase voltage to ~36V) and 4 parallel groups (to increase capacity/Ah), resulting in a pack containing 40 total cells.
This modularity allows engineers to design custom battery packs that fit into the irregular chassis spaces of mobile robots while hitting exact voltage and amperage targets required for DC brushless motors.
_18650_cells_diagram.png)
Real-World Applications
Warehouse AMRs
Used in "Kiva-style" shelf-lifting robots. The high energy density allows these compact robots to lift heavy racks and operate for 8-10 hours on a single charge.
Hospital Delivery Robots
Autonomous tugs delivering linens and medicine rely on 18650 packs for their clean operation, silent movement, and ability to be opportunity-charged at docking stations.
Inspection Crawlers
Small form-factor robots for pipe or duct inspection utilize small 2S or 3S 18650 configurations where space is at a premium but high motor torque is required.
Outdoor Surveillance Rovers
Security robots patrolling perimeters utilize large parallel banks of 18650s to maintain operation through cold nights, relying on the thermal mass of the pack.
Frequently Asked Questions
What is the difference between protected and unprotected 18650 cells for robotics?
Protected cells have a small integrated circuit (PCB) on the bottom that prevents overcharging, over-discharging, and short circuits. Unprotected cells lack this safeguard and are slightly shorter. In professional AGV battery packs, unprotected cells are typically used because the protection is handled by a centralized, sophisticated Battery Management System (BMS) covering the whole pack, rather than individual cell circuits.
How do I calculate the runtime of my robot using 18650 cells?
First, determine the total capacity of your pack in Amp-Hours (Ah) and the voltage (V) to get Watt-Hours (Wh = V × Ah). Then, divide the total Watt-Hours by the average power consumption of your robot in Watts. For example, a 500Wh battery pack powering a robot that consumes 50W on average will theoretically last 10 hours, though a safety margin of 20% is recommended.
What is "thermal runaway" and how is it prevented in AGVs?
Thermal runaway is a chain reaction where a cell overheats, causing adjacent cells to fail and potentially catch fire. In AGVs, this is prevented through active thermal management (heatsinks or fans), proper spacing between cells, and a BMS with thermal sensors that will cut power if temperatures exceed safe limits (usually 60°C/140°F).
Why is the C-Rating important for mobile robots?
The C-rating indicates the maximum safe continuous discharge rate relative to capacity. A 1C rating on a 2500mAh cell means it can output 2.5A. Robots often require high instantaneous current for acceleration or lifting; using cells with too low a C-rating will cause voltage sag, causing the robot to reset or stall under load.
Can I mix different brands or ages of 18650 cells in one robot?
No, you should never mix cells of different chemistries, capacities, brands, or ages. The weakest cell in a series will limit the entire pack's performance and is at high risk of reverse charging or failure. Always build packs from matched cells from the same manufacturing batch.
How does Li-Ion 18650 compare to LiFePO4 for robotics?
Standard Li-Ion (NMC/NCA) 18650s offer higher energy density, meaning more power in less space, which is critical for compact AGVs. However, LiFePO4 cells generally have a longer cycle life (2000+ cycles) and are chemically safer, though they are heavier and bulkier for the same energy capacity.
What happens to voltage as the robot battery drains?
Unlike a regulated power supply, battery voltage drops as it discharges. A 3.7V nominal cell starts at 4.2V fully charged and should be cut off around 3.0V. Your robot's motor controllers and electronics must be designed to handle this voltage range (e.g., a "24V" system varies between 29.4V and 21V).
Are 18650 cells suitable for 24/7 autonomous operations?
Yes, but usually via "opportunity charging" or battery swapping. Since charging takes time (typically 1-3 hours depending on the charger), 24/7 fleets often charge for short bursts during idle times or use swappable battery cartridges containing 18650 packs.
How do cold warehouse environments affect 18650 performance?
Lithium-ion performance drops significantly below freezing. Internal resistance increases, reducing available power and capacity. Furthermore, charging Li-Ion cells below 0°C (32°F) can cause permanent damage (lithium plating). Robots in cold storage need insulated battery packs with internal heaters.
What is the typical lifespan of an 18650 pack in an AGV?
In a heavy-use industrial setting (1 cycle per day), a high-quality 18650 pack typically lasts 1.5 to 3 years. The "end of life" is usually defined when the battery retains only 70-80% of its original capacity, after which the robot's range becomes too short for efficient operation.
