Ingress Protection (IP) Ratings
Defining the standard for durability in mobile robotics. Understand how IP ratings protect Autonomous Guided Vehicles (AGVs) from dust, debris, and liquids in challenging industrial environments.
_ratings_hero.png)
Core Concepts
The First Digit: Solids
Ranging from 0-6, this digit indicates protection against solid objects. For AGVs, a '5' or '6' is crucial to prevent dust accumulation that damages internal electronics.
The Second Digit: Liquids
Ranging from 0-9, this measures water resistance. A rating of '4' handles splashes, while '7' allows temporary immersion, essential for wash-down zones.
IEC 60529 Standard
The international standard governing IP codes. This ensures that an "IP54" rating on a robot in Germany means the same thing as one in the United States.
IP54: The Warehouse Standard
Protected against limited dust ingress and water sprays from any direction. This is the baseline requirement for general warehousing and logistics robots.
IP65/67: Harsh Environments
Dust-tight and protected against water jets (IP65) or immersion (IP67). Required for outdoor delivery robots or food processing AGVs utilizing sanitation protocols.
Design Implications
Higher IP ratings require sealed chassis, potted electronics, and specialized thermal management (heat sinks vs. fans) as airflow is restricted.
The Anatomy of a Sealed Robot
Achieving a specific Ingress Protection rating is not just about adding a cover; it requires a fundamental approach to chassis architecture. For mobile robots, every seam, sensor port, and charging contact is a potential point of failure.
Gaskets & Seals: High-IP robots utilize compressed O-rings and continuous gaskets between chassis plates. This prevents the "pumping effect"—where pressure changes during battery heating/cooling draw moisture into the robot.
Component Isolation: Critical components like the LiDAR, IMU, and Battery Management System (BMS) often carry their own individual IP ratings, adding a layer of redundancy. If the outer shell is breached, the core components remain protected.
Thermal Trade-offs: As the IP rating climbs (e.g., IP65+), active air cooling becomes impossible. Engineers must rely on conductive cooling via the chassis, turning the robot's body into a giant heat sink.

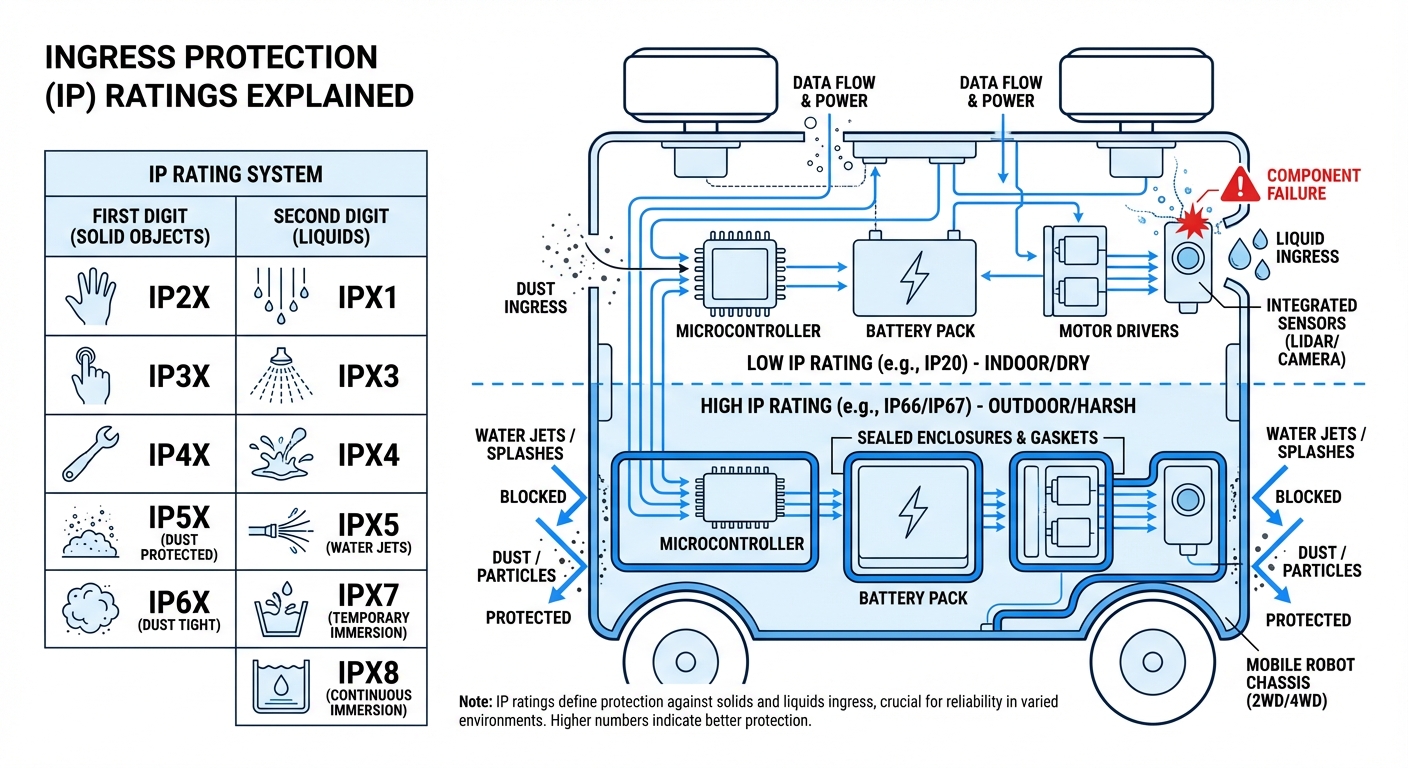

_ratings_diagram.png)
Real-World Applications
General Warehousing (IP54)
Standard fulfillment centers generate significant dust from cardboard and concrete. IP54 prevents this conductive dust from shorting AGV circuit boards over long operational cycles.
Food & Beverage (IP66/69K)
Facilities requiring high-pressure, high-temperature washdowns for sanitation need the highest protection. These robots feature smooth surfaces to prevent bacteria harborage.
Outdoor Logistics (IP65)
Last-mile delivery bots and yard tractors face rain, mud splashes, and snow. IP65 is the minimum to ensure operation during inclement weather without water ingress.
Heavy Manufacturing (IP5X)
Environments with metal shavings or conductive filings (like automotive welding lines) require dust-tight seals to prevent catastrophic electrical fires within the mobility platform.
Frequently Asked Questions
What does the 'X' mean in ratings like IPX4 or IP5X?
The 'X' is a placeholder indicating that the device has not been tested or rated for that specific category. For example, IPX4 means the robot is rated for water splashes (4) but has no specific rating for dust protection. It does not necessarily mean zero protection, but simply that no data is certified.
Is a higher IP rating always better for my AGV fleet?
Not necessarily. Higher IP ratings (IP65+) typically result in higher costs and heavier robots due to sealing requirements. They also complicate thermal management since fans cannot be used. You should match the IP rating to your specific environment to optimize ROI.
What is the difference between IP67 and IP68?
Both represent immersion in water. IP67 allows for immersion up to 1 meter for 30 minutes. IP68 is for continuous immersion beyond 1 meter under conditions specified by the manufacturer. For most mobile robots, IP67 is sufficient for accidental deep puddles, while IP68 is rarely needed.
Can I pressure wash a robot with an IP54 rating?
No. IP54 only protects against splashing water. High-pressure jets can penetrate IP54 seals and damage internal components. For pressure washing, you specifically need IP65 (low pressure) or IP66 (high pressure) ratings, and ideally IP69K for steam cleaning.
Does an IP rating cover chemical resistance?
No, IP ratings strictly cover solid objects (dust) and water. Resistance to cleaning chemicals, acids, or oils is a separate material property. A robot could be IP67 (waterproof) but have seals that degrade when exposed to industrial solvents.
How does an IP rating affect robot maintenance?
High IP-rated robots are often harder to service because panels are sealed with many screws and gaskets. Additionally, seals wear out over time. Part of the maintenance schedule must include inspecting gaskets and O-rings to ensure the IP rating is maintained throughout the robot's lifecycle.
Can I upgrade an existing robot to a higher IP rating?
Generally, no. IP ratings are determined by the fundamental design of the chassis, cable routing, and thermal architecture. While you can add rain covers, achieving a certified upgrade usually requires replacing the entire housing and cooling system.
What IP rating is needed for outdoor AMRs?
For outdoor operation, IP65 is the recommended minimum. This protects against windblown dust and rain from all angles. If the robot operates in areas prone to flooding or deep standing water, IP67 is safer for the drivetrain components located near the ground.
Do external sensors (LiDAR/Cameras) have their own ratings?
Yes, and the system is only as strong as its weakest link. If a robot chassis is IP65 but the navigation LiDAR is IP54, the overall system cannot be treated as IP65. When specifying a robot, ensure all peripheral sensors match the environment's requirements.
How does condensation affect IP ratings?
Standard IP ratings do not account for condensation formed inside the robot due to temperature shifts (e.g., moving from a cold freezer to a warm dock). For these environments, electronics need conformal coating or internal heating elements, regardless of the external IP rating.
