Edge AI Computing (TensorRT)
Unlock the full potential of autonomous mobile robots by processing complex neural networks directly on the device. NVIDIA TensorRT optimizes deep learning models for high-performance inference, ensuring AGVs execute navigation and safety decisions with millisecond latency.
_hero.png)
Core Concepts
High-Performance Inference
TensorRT compiles deep learning models into highly optimized execution engines. This maximizes the throughput of onboard GPUs, allowing robots to process more video frames per second.
Ultra-Low Latency
For AGVs moving at speed, cloud latency is unacceptable. Edge AI processes data locally, ensuring instant reaction times for obstacle avoidance and emergency stops.
Precision Calibration
Utilize reduced precision modes like INT8 and FP16. This significantly reduces memory usage and increases computation speed with negligible impact on model accuracy.
Kernel Auto-Tuning
TensorRT automatically selects the best data layers and algorithms for the specific target hardware (e.g., Jetson Orin), removing the need for manual optimization.
Framework Agnostic
Train your models in PyTorch or TensorFlow, then convert to ONNX. TensorRT ingests these standard formats to generate highly optimized runtime engines.
Multi-Stream Execution
Modern AGVs use multiple sensors. TensorRT supports parallel execution, allowing simultaneous processing of LiDAR data, camera feeds, and path planning algorithms.

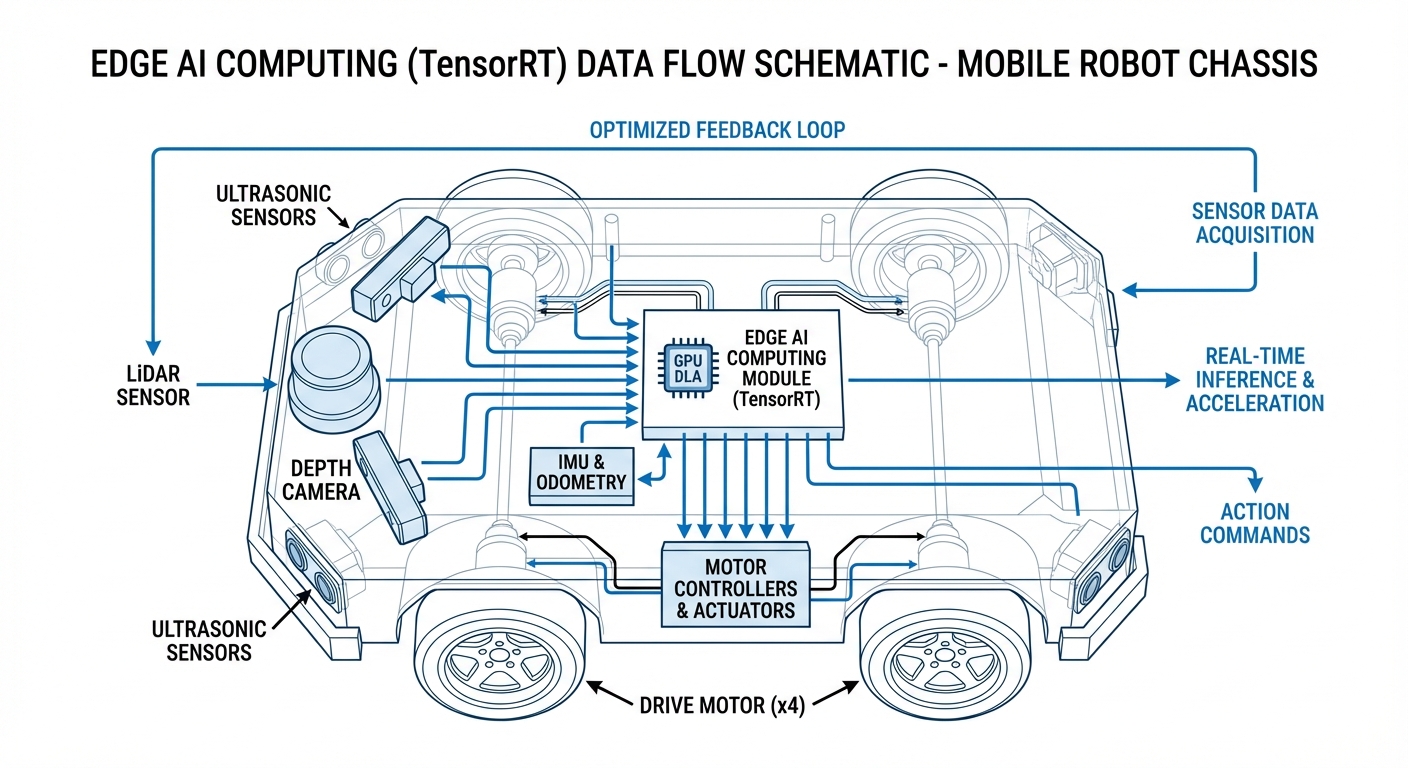

How It Works: The Optimization Pipeline
The journey from a trained neural network to a deployed robot involves rigorous optimization. Standard frameworks like PyTorch are excellent for training but heavy for deployment. TensorRT acts as the bridge, restructuring the neural network graph to be leaner and faster.
During the build phase, TensorRT performs layer fusion—combining multiple layers into a single kernel to reduce memory access overhead. It also calibrates the weights for lower precision (INT8) without losing the model's predictive power.
The result is a serialized "engine" file specific to your robot's GPU. When the AGV operates, this engine executes inference with maximum parallelism, freeing up CPU resources for other critical tasks like fleet communication or battery management.
_diagram.png)
Real-World Applications
Semantic Segmentation in Warehouses
AGVs use TensorRT-optimized models to classify every pixel in a camera feed. This allows the robot to distinguish between drivable floor space, spilled liquids, storage racks, and human personnel in real-time.
Visual SLAM & Localization
Instead of expensive LiDAR, robots can use cameras for Simultaneous Localization and Mapping (SLAM). Edge AI accelerates feature extraction, allowing the robot to map dynamic environments without drift.
Smart Quality Inspection
Mobile manipulators equipped with cameras can perform quality checks on the fly. As the robot moves past shelves, it detects missing labels or damaged packaging instantly using object detection models.
Human Pose Estimation
Collaborative robots (Cobots) must predict human intent. By running pose estimation models at the edge, the robot can anticipate a worker's movement and slow down or stop before a collision occurs.
Frequently Asked Questions
What hardware is required to run TensorRT on an AGV?
TensorRT is designed specifically for NVIDIA GPUs. For mobile robotics, this typically means the NVIDIA Jetson family of embedded modules (Nano, Orin Nano, Orin NX, and AGX Orin), which provide high CUDA core counts in a low-power form factor.
How much performance gain can I expect compared to CPU inference?
Performance gains vary by model, but it is common to see 10x to 40x improvements in throughput compared to CPU-only inference. Even compared to standard GPU execution (without TensorRT optimization), gains of 2x to 5x are typical due to kernel tuning and precision calibration.
Does reducing precision to INT8 affect the robot's navigation accuracy?
Generally, no. TensorRT uses a calibration step to minimize information loss when converting from 32-bit floating point to 8-bit integers. In most robotics applications, the accuracy drop is less than 1%, while the speed and memory efficiency improve drastically.
Can I update the AI models on the robot after deployment?
Yes. You can retrain models on a central server and push the new weights or ONNX files to the fleet over-the-air (OTA). The robot can then rebuild the TensorRT engine locally, or you can pre-compile the engine for the specific hardware revision and push the engine file directly.
Does TensorRT support custom neural network layers?
Yes, TensorRT supports a plugin architecture. If your model uses a novel layer type not natively supported, you can write a custom C++ or Python plugin to handle that specific operation within the optimized graph.
How does Edge AI impact the battery life of an AGV?
While GPUs consume power, completing inference tasks 20x faster allows the processor to return to an idle state sooner or process more data per watt. NVIDIA Jetson modules are specifically architected for high performance-per-watt, making them suitable for battery-operated robots.
Is internet connectivity required for the robot to function?
No. This is the primary advantage of Edge AI. Once the TensorRT engine is deployed, all processing happens locally on the robot. This ensures navigation and safety functions continue uninterrupted even in Wi-Fi dead zones.
What is the typical workflow for deploying a PyTorch model?
The standard workflow is: 1. Train model in PyTorch. 2. Export model to ONNX format. 3. Use `trtexec` (command line) or the Python API on the target Jetson device to convert the ONNX file into a TensorRT Engine (.plan or .engine file).
Can TensorRT handle multiple camera streams simultaneously?
Absolutely. You can use NVIDIA's DeepStream SDK in conjunction with TensorRT to manage decoding, preprocessing, and batched inference for multiple cameras (e.g., front, rear, and side views) efficiently within a single pipeline.
How do I troubleshoot if a model fails to convert?
Use the `trtexec` tool with verbose logging enabled to identify unsupported layers. Often, issues arise from dynamic shapes or unsupported operators in the ONNX export. Using `onnx-graphsurgeon` can help modify the graph to be compatible before conversion.
Is it possible to switch models dynamically during operation?
Yes. Applications can load multiple TensorRT engines into memory (RAM permitting) and switch execution contexts based on the robot's current task (e.g., switching from "Navigation Mode" to "Precision Docking Mode").
