Deep Reinforcement Learning (DRL)
Revolutionizing autonomous navigation by combining deep neural networks with reward-based learning. DRL enables AGVs to adapt to dynamic environments, optimize complex pathing, and make intelligent decisions without explicit rule-based programming.
_hero.png)
Core Concepts
The Agent
In our context, the AGV or mobile robot acts as the agent. It interacts with the warehouse environment and learns to make decisions to maximize a cumulative reward.
State Space
The input data received from sensors (LiDAR, cameras, IMU). The deep neural network processes this raw data to understand the robot's current situation.
Action Space
The set of all possible moves the robot can make, such as steering angles, acceleration, or braking. DRL maps states to these specific actions.
Reward Function
The feedback mechanism. Positive points are given for reaching goals or efficiency, while negative points (penalties) are assigned for collisions or delays.
Policy Network
A deep neural network (DNN) that approximates the best strategy. It takes the state as input and outputs the probability of taking specific actions.
Exploration vs. Exploitation
The balance between trying new random actions to discover better paths (exploration) and using known safe actions to maximize rewards (exploitation).
How DRL Powers Autonomous Fleets
Unlike traditional path planning algorithms (like A*) that require a mapped environment and rigid rules, Deep Reinforcement Learning allows robots to learn directly from raw sensor inputs. This process mimics how humans learn skills: through trial and error, refined over millions of iterations in simulation before deployment.

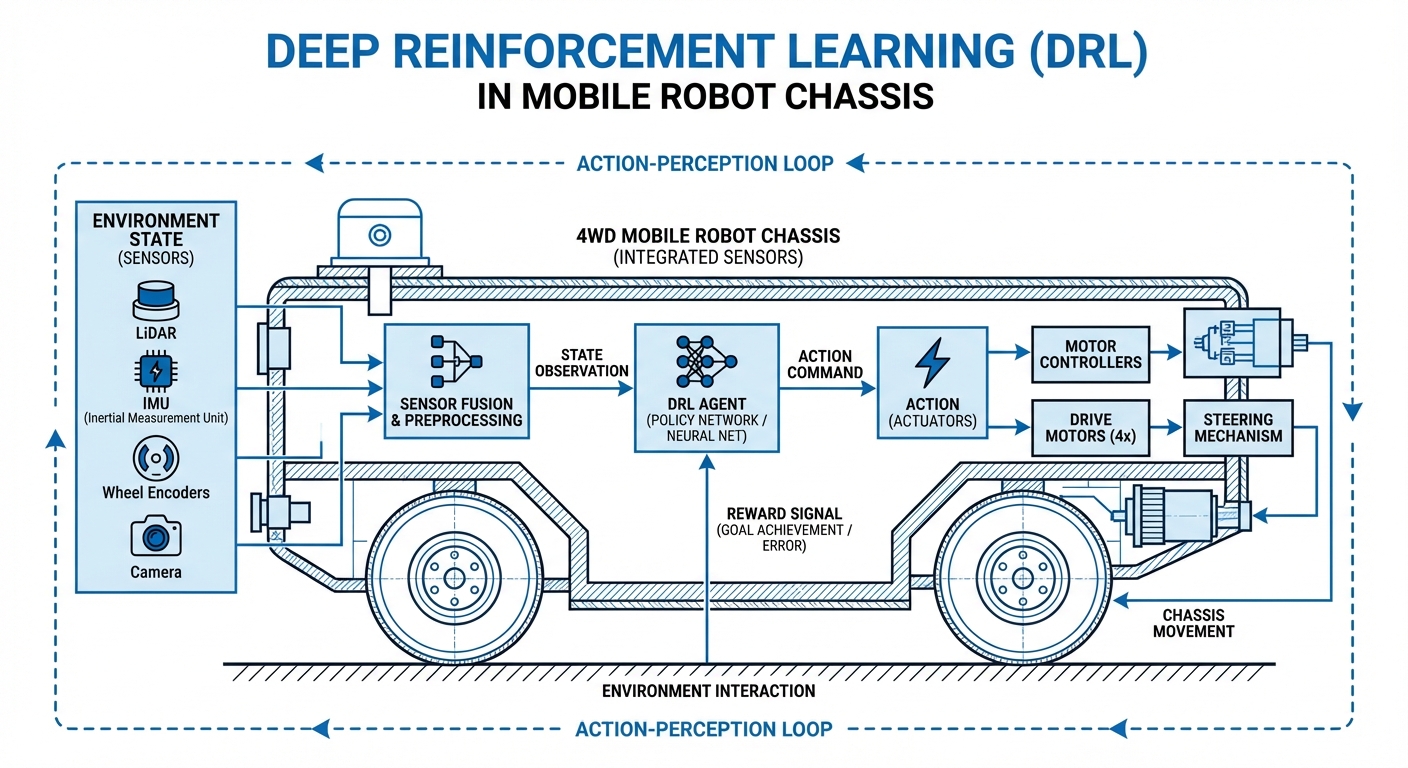

The core mechanism involves an Agent (the robot) observing a State (s) from the environment. Based on its current policy, it executes an Action (a). The environment responds with a new state (s') and a numerical Reward (r).
Over time, the Deep Neural Network updates its weights to maximize the cumulative reward. This results in emergent behaviors, such as smooth obstacle avoidance in crowded aisles or cooperative merging at intersections, which are difficult to hard-code manually.
_diagram.png)
Real-World Applications
Dynamic Obstacle Avoidance
Standard sensors detect obstacles, but DRL predicts movement. Robots learn to navigate around moving humans and forklifts smoothly without stop-and-go jitter, anticipating trajectories rather than just reacting to proximity.
Multi-Agent Path Finding (MAPF)
In high-density warehouses, DRL allows fleets of hundreds of robots to coordinate decentrally. They learn to yield at intersections and avoid gridlocks without requiring a central server to calculate every micro-movement.
Sim-to-Real Transfer
Training a robot in the real world is slow and dangerous. DRL models are trained in physics-accurate digital twins (simulation) at 1000x speed, and the learned "brain" is then transferred to physical robots with high fidelity.
Energy-Efficient Navigation
By including battery consumption in the reward function, AGVs learn to choose paths that minimize energy usage, coast when possible, and optimize acceleration profiles to extend fleet uptime.
Frequently Asked Questions
What is the primary difference between DRL and SLAM?
SLAM (Simultaneous Localization and Mapping) is strictly for building a map and knowing where the robot is within it. DRL is a decision-making framework. While SLAM provides the input (location/state), DRL decides how to move the robot to reach a goal based on that data.
Why use DRL instead of classical PID controllers or A* pathfinding?
Classical methods struggle with high-dimensional, dynamic environments where rules change rapidly (e.g., a crowded loading dock). DRL excels in generalization, allowing the robot to handle scenarios it wasn't explicitly programmed for, such as navigating around a toppled box or a moving person.
What is Sim-to-Real transfer and why is it difficult?
Sim-to-Real is the process of training a model in a simulation and deploying it on physical hardware. The difficulty, known as the "reality gap," arises because simulations cannot perfectly model friction, sensor noise, or lighting conditions, potentially causing the robot to fail in the real world without domain randomization techniques.
How do you ensure safety during the training phase?
Training usually happens entirely in simulation where crashes have no cost. For real-world fine-tuning, we use "Safe RL" approaches, which include hard-coded safety shields or reflex layers that override the DRL agent if it attempts an unsafe action.
What hardware is required to run DRL models on an AGV?
Inference (running the model) is much lighter than training. Most modern AGVs use edge computing devices with GPU acceleration, such as NVIDIA Jetson modules, to process sensor data and run the policy network in real-time with low latency.
Does DRL require a map of the facility?
Not necessarily. While map-based DRL exists, "Mapless Navigation" is a popular DRL application where the robot navigates purely on local sensor observations (like LiDAR scans) relative to a target coordinate, making it robust to facility layout changes.
What is the "Reward Hacking" problem?
Reward hacking occurs when the agent finds a loophole to maximize points without achieving the actual goal (e.g., spinning in circles to collect "movement" points). Designing a robust reward function is one of the most challenging aspects of implementing DRL.
How much data is needed to train a DRL model?
DRL is extremely sample-inefficient, often requiring millions of interaction steps. This is why parallel simulations are used to generate years of "experience" in just a few days of computing time.
Can DRL handle continuous action spaces?
Yes. Algorithms like PPO (Proximal Policy Optimization) and SAC (Soft Actor-Critic) are designed for continuous control, allowing for smooth outputs like "accelerate by 12%" rather than discrete choices like "move forward" or "stop."
How does DRL impact the battery life of the robot?
While the computation requires energy, the operational efficiency gained usually outweighs the cost. DRL agents can learn to drive more smoothly than human operators, reducing jerky movements that drain batteries quickly.
Is it possible to retrain the robot after deployment?
Yes, this is called "Continuous Learning." However, it is risky to let robots learn autonomously in production environments. Typically, data is collected from the fleet, the model is updated offline, validated, and then pushed as an OTA update.
What are the most common algorithms used in Robotics DRL?
Deep Q-Networks (DQN) are used for discrete actions, while Soft Actor-Critic (SAC), Twin Delayed DDPG (TD3), and Proximal Policy Optimization (PPO) are the industry standards for continuous control in mobile robotics.
