3D Printing Materials (PLA/ABS/Nylon)
Master the material science behind rapid prototyping and end-use manufacturing for Autonomous Guided Vehicles. From PLA’s accessibility for iterating sensor mounts to Nylon’s abrasion resistance for internal gears, selecting the right thermoplastic is critical for fleet durability and performance.
_hero.png)
Core Concepts
PLA (Polylactic Acid)
The standard for rapid prototyping. Rigid and easy to print, perfect for checking fitment of AGV chassis components before final manufacturing.
ABS (Acrylonitrile Butadiene Styrene)
Known for high impact resistance and moderate heat tolerance. Ideal for protective bumpers and housings that face warehouse wear and tear.
Nylon (Polyamide)
The engineering powerhouse. Features low friction coefficient and high flexibility, making it essential for gears, bushings, and snap-fit joints.
Glass Transition
Critical for AGV motor mounts. While PLA softens at 60°C, ABS and Nylon withstand higher temperatures generated by drive units and electronics.
Moisture Absorption
Nylon absorbs water from the air, affecting structural integrity. Proper storage and annealing are required for reliable robot parts.
Z-Axis Strength
3D printed parts are weakest between layers. Orientation during printing determines if a load-bearing bracket will hold or snap under vibration.
How It Works: Material Science in Robotics
In the development of Autonomous Mobile Robots (AMRs), Fused Deposition Modeling (FDM) allows engineers to transition from CAD designs to physical parts in hours. The choice of filament—PLA, ABS, or Nylon—dictates the functional role of the printed part within the robot's architecture.
**PLA** is composed of organic chains that crystallize rigidly, offering excellent dimensional accuracy for sensor housings but failing under the heat of heavy duty cycles. **ABS** utilizes a butadiene rubber phase that arrests crack propagation, making it essential for external bumpers that may impact obstacles.
**Nylon** stands apart with its semi-crystalline structure, offering high fatigue resistance and self-lubricating properties. This makes it the only viable candidate among the three for dynamic components like wheel gears, cable chains, and friction-heavy bushings inside the AGV's powertrain.

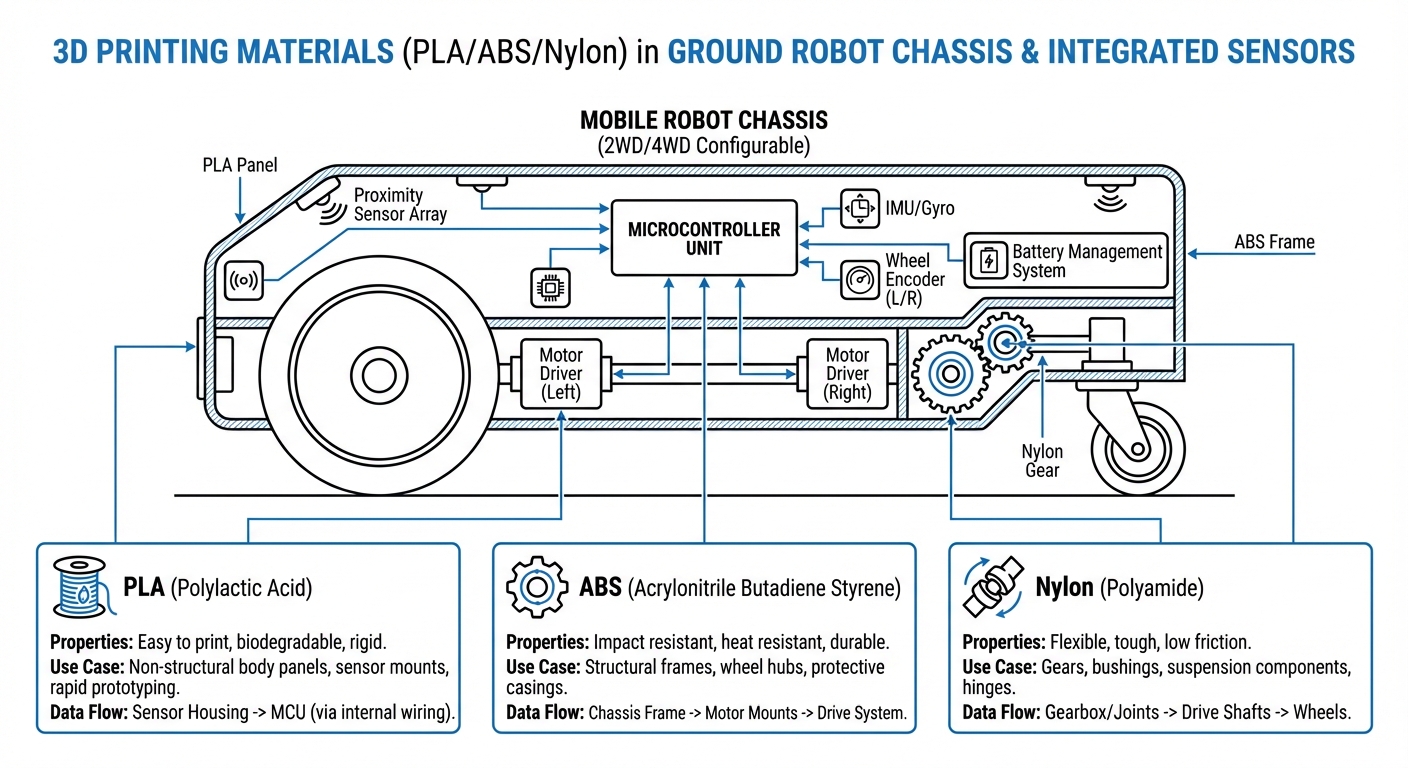

_diagram.png)
Real-World Applications
LiDAR & Camera Mounts
Custom brackets printed in **ABS** or **PETG** (a PLA alternative) allow for precise positioning of navigation sensors. ABS is preferred here due to its resistance to ambient heat and UV radiation if the AGV operates in mixed lighting environments.
Internal Wire Management
**Nylon** is extensively used to print cable chains and clips that flex repeatedly as the robot steers or lifts payloads. Its high fatigue limit ensures these clips don't snap after thousands of cycles.
Sacrificial Bumpers
Warehouses are harsh environments. **ABS** parts are often designed as sacrificial "fuses"—cheap, printed bumpers that absorb impact energy and break to protect the expensive chassis or electronics behind them.
Rapid Chassis Prototyping
Before committing to expensive injection molds or CNC machining, **PLA** is used to print full-scale mockups of the AGV body to verify component clearances, battery accessibility, and assembly ergonomics.
Frequently Asked Questions
Which material is best for an outdoor AGV chassis?
For outdoor environments, standard ABS acts better than PLA but degrades under UV light (ASA is a better alternative to ABS for UV). However, among these three, **Black ABS** or **Nylon** is preferred for thermal stability, provided they are coated or painted to protect against UV radiation.
Why do my ABS prints warp when printing large AGV parts?
ABS shrinks significantly as it cools. When printing large flat parts like chassis bases, uneven cooling causes corners to lift (warp). You must use a heated bed (100°C+) and an enclosed printer chamber to maintain a consistent ambient temperature during the print.
Can I use PLA for motor mounts?
It is not recommended. PLA has a low glass transition temperature (~60°C). Stepper motors and servo drives often reach temperatures that can cause PLA to soften and deform, leading to loose belts or misaligned gears. Use ABS or Nylon for any parts touching motors.
Is Nylon difficult to print for beginners?
Yes, Nylon is challenging. It requires an all-metal hotend (250°C+), a dry box (it absorbs moisture rapidly causing popping sounds and weak parts), and bed adhesive (PVA glue) to prevent warping. It is an advanced material compared to PLA.
How does layer orientation affect robot structural integrity?
FDM parts are anisotropic, meaning they are strong in the X/Y axis but weak in the Z axis (layer adhesion). Always orient your print so that the primary stress forces run parallel to the layers, not perpendicular, to prevent delamination under load.
Can I tap threads directly into 3D printed plastic?
You can, but it is not durable for repeated assembly/disassembly. For AGVs that require maintenance, it is best practice to use **heat-set threaded inserts**. These brass inserts are melted into the plastic (ABS works best) to provide strong metal threads.
What is the benefit of Carbon Fiber filled Nylon?
Adding chopped carbon fiber to Nylon significantly increases stiffness and dimensional stability while reducing weight. This is excellent for structural robotic arms or lightweight chassis components, though it is abrasive and requires hardened steel nozzles to print.
Does PLA degrade over time in a warehouse?
In a temperature-controlled warehouse, PLA can last for years. However, under constant vibration from AGV movement, PLA is more brittle than ABS and may crack suddenly rather than yielding/bending. It is generally reserved for non-critical covers.
How do I smooth ABS parts for a professional look?
ABS can be "vapor smoothed" using Acetone. Placing the print in a container with acetone vapor melts the outer surface slightly, fusing layers together and creating a glossy, injection-molded appearance. This also slightly increases Z-axis strength.
What infill percentage should I use for structural robot parts?
For structural parts, wall thickness (perimeters) matters more than infill. Use 4-5 wall perimeters and 40-50% infill (Grid or Gyroid pattern). 100% infill is rarely necessary and can actually increase warping stresses in materials like ABS.
Can I mix materials in a dual extrusion printer?
Yes. A common technique for complex AGV geometries is to print the structural part in PLA or ABS and the support structures in a dissolvable material (like PVA for PLA or HIPS for ABS). This allows for intricate internal geometries and overhangs.
