The DENSO VP Series represents the world's smallest and most compact 5 and 6-axis articulated robots, delivering exceptional precision and speed in an incredibly space-efficient package. With payload options of 2.5-3 kg and reach of 430-432 mm, the VP Series robots occupy a footprint of just 160 x 160 mm (aseptic models: 200 x 200 mm), enabling installation in confined spaces where conventional robots cannot fit. Available in standard and aseptic cleanroom variants, the VP Series combines ultracompact dimensions with remarkable precision (±0.02 mm repeatability), rapid cycle times (0.99 seconds), and exceptional energy efficiency (300W maximum). Perfect for electronics assembly, precision material handling, and applications where space constraints demand miniaturization.
Specifications
Payload
2.5-3 kg
Reach
430-432 mm
Number of Axes

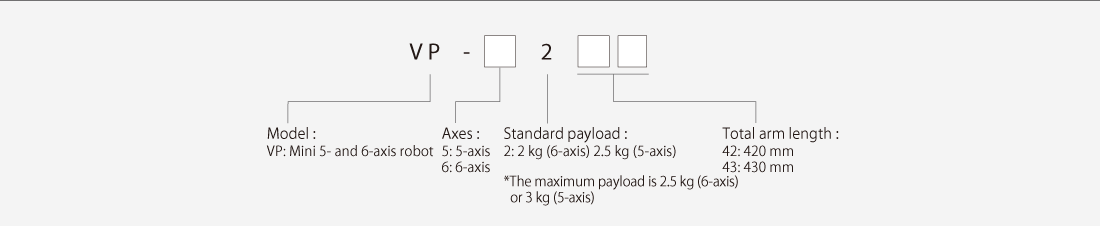

5 (VP-5243) or 6 (VP-6242)
Footprint
160 x 160 mm (standard), 200 x 200 mm (aseptic)
Robot Weight
13 kg (5-axis), 15 kg (6-axis)
Cycle Time
0.99 seconds
Position Repeatability
±0.02 mm
Maximum Composite Speed
3,900 mm/sec
Power Consumption
300W maximum
Operating Temperature
0°C to +45°C
Air Source
0.10-0.39 MPa operating pressure
IP Protection
IP54
Noise Level
<80 dB(A)
Mounting Options
Compact installation with flexible positioning
Environmental Variants
Standard, Aseptic cleanroom
Controller Compatible
RC8A
Applications
Electronics assembly, Micro-assembly, Medical device assembly, Precision positioning, Confined-space automation
Weight
260kg
Payload
200kg
Max Speed
1.5 m/s
Operating Temperature
-20°C to 60°C
IP Rating
IP67
Climbing Ability
35°
Battery
48V 60Ah
Communication
CAN
Key Features
Smallest 5/6
axis robots with 160 x 160 mm footprint enabling confined space installation
Ultralight construction at only 13
15 kg enabling flexible mounting
Payload: 2.5
3 kg balancing lightweight efficiency with capability
Exceptional precision repeatability of ±0.02 mm for micro
assembly applications
Ultra
fast cycle time of 0.99 seconds enabling rapid material handling
Feature
Maximum composite speed of 3,900 mm/sec enabling rapid positioning
Energy
efficient at maximum 300W per robot reducing operational costs
Feature
Available in standard (160 x 160 mm) and aseptic (200 x 200 mm) variants
Feature
Internally routed air piping (4 systems) and signal lines eliminating external cable management
Feature
Flexible joint motion ranges enabling diverse positioning requirements
Advanced Suspension System
Advanced Suspension System - BUNKER PRO 2.0 offers exceptional flexibility with its low center of gravity. Equipped with the 1800W dual-motor drive, it excels in obstacle crossing and climbing with impressive performance. Its independent suspension system and heavy-duty shock absorption guarantee a smooth drive on even the toughest terrains
Expansion and Secondary Development
Expansion and Secondary Development - BUNKER PRO 2.0 offers aluminum T-slot rails for secure mounting of external sensors or kits. It supports CAN bus protocol for connections and provides open-source SDK and software resources for expanded capabilities
Product Description
The DENSO VP Series represents the world's smallest and most compact 5 and 6-axis articulated robots, delivering exceptional precision and speed in an incredibly space-efficient package. With payload options of 2.5-3 kg and reach of 430-432 mm, the VP Series robots occupy a footprint of just 160 x 160 mm (aseptic models: 200 x 200 mm), enabling installation in confined spaces where conventional robots cannot fit. Available in standard and aseptic cleanroom variants, the VP Series combines ultracompact dimensions with remarkable precision (±0.02 mm repeatability), rapid cycle times (0.99 seconds), and exceptional energy efficiency (300W maximum). Perfect for electronics assembly, precision material handling, and applications where space constraints demand miniaturization.
Frequently Asked Questions
Through advanced mechanical design, compact servo motors, and optimized joint geometry, Denso engineers achieved the 160 x 160 mm footprint while maintaining full 5/6-axis capability. This makes VP Series ideal for tight assembly cells and automated workstations where space is at a premium.
Yes, the 3 kg payload is designed specifically for electronics assembly applications including circuit board handling, component placement, and precision micro-assembly where typical components weigh grams to a few kilograms.
The aseptic variant (200 x 200 mm footprint) is designed for pharmaceutical and medical device assembly in cleanroom environments. It features sealed components, special lubricants, and design compliant with ISO cleanroom standards.
Low power consumption reduces electrical infrastructure requirements, operating costs, and heat generation. This enables installation in environments where power availability is limited, such as confined workstations or retrofit applications.
The ±0.02 mm repeatability enables consistent micro-positioning for delicate component placement, precision insertion, and applications requiring extremely tight tolerances in micro-assembly.
Yes, the VP Series with RC8A controller supports standard I/O, signal lines, and air piping integration. Internal routing of cables and air lines simplifies integration and prevents interference with surrounding equipment.
