The DENSO VM Series represents the next step in payload capacity while maintaining compact design philosophy. With 13 kg payload and reaches of 1021-1298 mm, the VM Series bridges the gap between compact VS robots and high-payload VMB/VLA systems. Delivering professional-grade precision (±0.03 mm repeatability), exceptional speed, and robust construction, the VM Series excels in material handling, machine tending, assembly of larger components, and general industrial automation. The space-saving design enables flexible cell layouts while the internal cable routing and proven reliability make VM Series an ideal choice for manufacturing facilities requiring mid-range payload capability with high-precision performance.
Specifications
Payload
13 kg
Reach
1021-1298 mm
Number of Axes
6
Position Repeatability
±0.03 mm

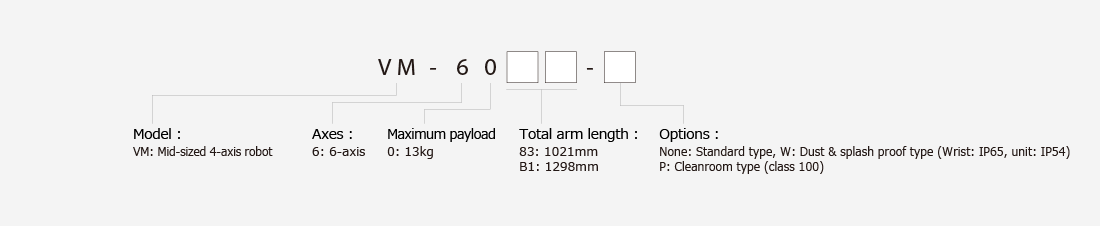

Key Models
VM-6083 (1021 mm reach), VM-60B1 (1298 mm reach)
Robot Weight
25-35 kg
Operating Temperature
0°C to +45°C
IP Protection
IP54 (standard), IP65 optional
Power Consumption
Moderate (1-2 kVA typical)
Mounting Options
Floor, wall, ceiling flexible installation
Controller Compatible
RC8A
Applications
Material handling, Machine tending, Medium-sized component assembly, General industrial automation, Palletizing light payloads
Weight
260kg
Payload
200kg
Max Speed
1.5 m/s
Operating Temperature
-20°C to 60°C
IP Rating
IP67
Climbing Ability
35°
Battery
48V 60Ah
Communication
CAN
Key Features
Generous 13 kg payload enabling handling of medium
sized components
Extended reach of 1021
1298 mm covering larger work envelopes
Precision of ±0.03 mm maintaining tight
tolerance positioning
Compact design despite mid
range payload enabling space-efficient installation
Feature
Internally routed cables and air lines preventing external interference
High
speed operation enabling rapid material handling cycles
Feature
Robust servo construction for continuous industrial operation
Multiple environmental variants available (standard, cleanroom, dust
proof)
Feature
Compatible with unified RC8A controller
Minimal maintenance requirements with two
year warranty
Advanced Suspension System
Advanced Suspension System - BUNKER PRO 2.0 offers exceptional flexibility with its low center of gravity. Equipped with the 1800W dual-motor drive, it excels in obstacle crossing and climbing with impressive performance. Its independent suspension system and heavy-duty shock absorption guarantee a smooth drive on even the toughest terrains
Expansion and Secondary Development
Expansion and Secondary Development - BUNKER PRO 2.0 offers aluminum T-slot rails for secure mounting of external sensors or kits. It supports CAN bus protocol for connections and provides open-source SDK and software resources for expanded capabilities
Product Description
The DENSO VM Series represents the next step in payload capacity while maintaining compact design philosophy. With 13 kg payload and reaches of 1021-1298 mm, the VM Series bridges the gap between compact VS robots and high-payload VMB/VLA systems. Delivering professional-grade precision (±0.03 mm repeatability), exceptional speed, and robust construction, the VM Series excels in material handling, machine tending, assembly of larger components, and general industrial automation. The space-saving design enables flexible cell layouts while the internal cable routing and proven reliability make VM Series an ideal choice for manufacturing facilities requiring mid-range payload capability with high-precision performance.
Frequently Asked Questions
The VM Series offers 13 kg payload (vs 4-7 kg for VS) and longer reach (1021-1298 mm vs 505-905 mm), making it ideal for handling larger, heavier components while maintaining Denso's precision standards (±0.03 mm).
Yes, the 13 kg payload and extended reach make the VM Series excellent for machine tending applications including loading/unloading, part transfers between machines, and general material handling in manufacturing.
Typical cycle times vary by application but range from 0.8-1.5 seconds depending on the distance traveled and component weight. The high-speed servo motors enable rapid repositioning.
Yes, for light-duty palletizing applications with 13 kg maximum per unit load. The extended reach and payload make it suitable for building pallets with smaller components or lightweight items.
The VM Series is available in standard IP54 configuration. Dust-proof (IP65) and other environmental variants may be available upon request for specific manufacturing environments.
Yes, the VM Series has a standard wrist flange compatible with common end-effectors including grippers, vacuum systems, and custom tools. Internal air and electrical routing supports integrated tooling.
