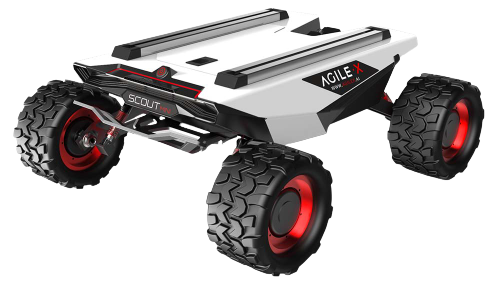

SCOUT MINI
Scout Mini is a high-speed mini mobile robot equipped with 4-wheel drive, independent suspension, and a lightweight power system, enabling it to reach a maximum speed of 10 km/h. Its precise maneuverability makes it ideal for conducting cutting-edge research experiments.
Image Gallery
Specifications
Dimensions
612mm x 580mm x 245mm
Weight
26kg
Payload
10kg
Max Speed
2.7 m/s
Operating Temperature
-20°C to 60°C
IP Rating
IP22
Climbing Ability
30°
Obstacle Clearance
90mm
Battery
24V 30Ah
Communication
CAN
Key Features
Dual-wheel Options

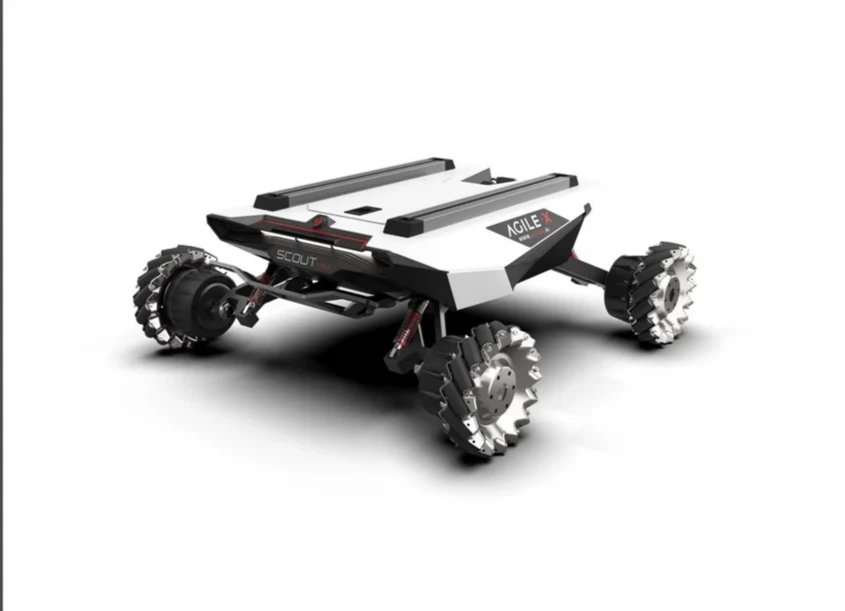

Dual-wheel Options - SCOUT MINI is available with a choice of standard wheels and mecanum wheel kits. Mecanum wheels allow for omnidirectional driving compared to the differential drive steering of standard wheel kits
Agile Movement in Diverse Environments
Agile Movement in Diverse Environments - SCOUT MINI utilizes four-wheel independent servo drive and double wishbone suspension, effortlessly climbing 30° slopes. It seamlessly transitions between indoor and outdoor environments
Expansion and Secondary Development
Expansion and Secondary Development - SCOUT MINI offers aluminum T-slot rails for secure mounting of external sensors or kits. It supports CAN bus protocol for connections and provides open-source SDK and software resources for expanded capabilities
Product Description
Scout Mini is a high-speed mini mobile robot equipped with 4-wheel drive, independent suspension, and a lightweight power system, enabling it to reach a maximum speed of 10 km/h. Its precise maneuverability makes it ideal for conducting cutting-edge research experiments.
Frequently Asked Questions
Standard delivery is 4-6 weeks for most models. Express shipping options are available for urgent requirements.
The product supports ROS 1 (Melodic, Noetic) and ROS 2 (Foxy, Humble), with comprehensive SDK documentation and examples.
Yes, we offer customization services including sensor integration, payload modifications, and software customization to meet specific requirements.
All products come with a 1-year warranty and lifetime technical support. Extended warranty options are available.
