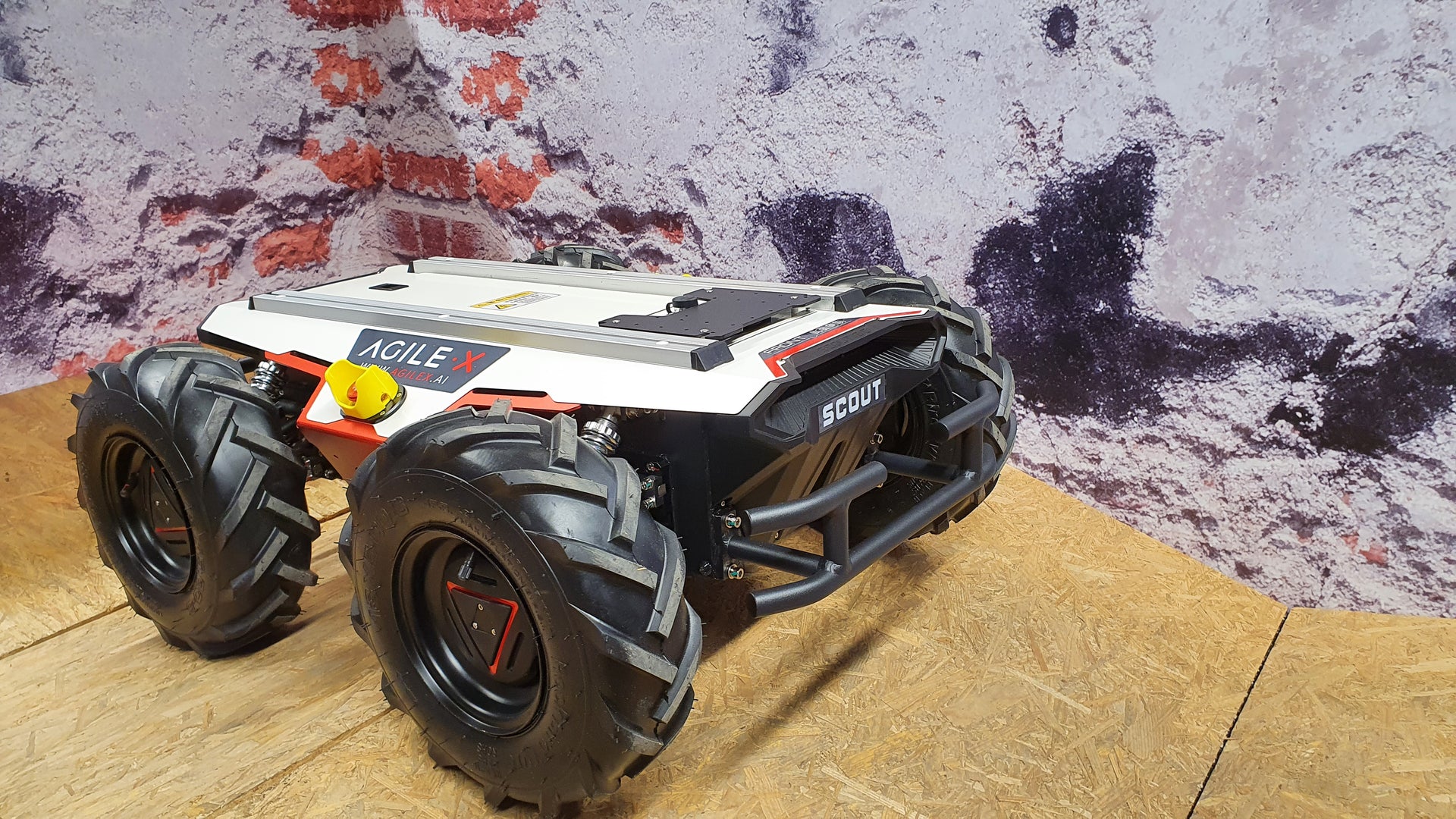

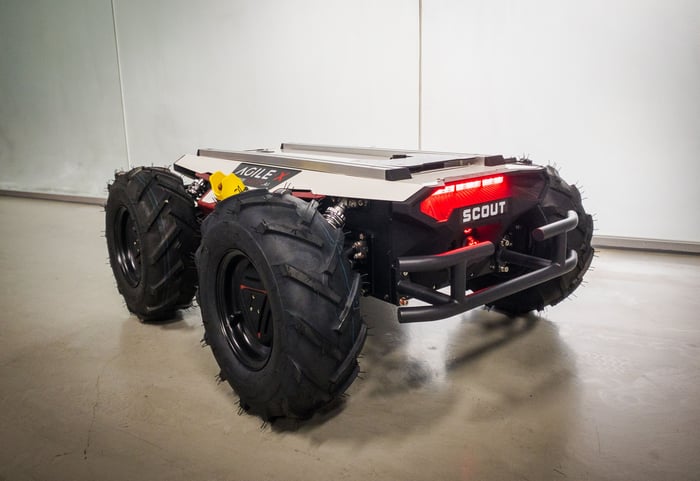

SCOUT 2.0
Designed for robotics research and development, the Scout 2.0 is an autonomous mobile robot. This autonomous mobile robot is CE certified and offers robust mechanical design along with capable mobility performance.
Image Gallery
Specifications
Dimensions
930mm x 699mm x 349mm
Weight
68kg
Payload
50kg
Max Speed
1.5 m/s
Operating Temperature
0°C to 40°C
Battery
24V30Ah
Charging Time
3.5/7hr
Obstacle Clearance
150mm
IP Rating
IP22
Key Features
Circulating Cooling System
Circulating Cooling System - The circulating cooling system combines internal and external circulation for all-weather operation and adaptability to high-intensity and high-temperature environments
Suspension
Suspension - SCOUT2.0 employs 200W brushless servo motors to drive each wheel independently. Its double-wishbone suspension with shock absorbers ensures stability on rough terrain, enabling it to tackle obstacles up to 10cm tall effortlessly
Expansion and Secondary Development
Expansion and Secondary Development - SCOUT 2.0 offers aluminum T-slot rails for secure mounting of external sensors or kits. It supports CAN bus protocol for connections and provides open-source SDK and software resources for expanded capabilities
Product Description
Designed for robotics research and development, the Scout 2.0 is an autonomous mobile robot. This autonomous mobile robot is CE certified and offers robust mechanical design along with capable mobility performance.
Frequently Asked Questions
Standard delivery is 4-6 weeks for most models. Express shipping options are available for urgent requirements.
The product supports ROS 1 (Melodic, Noetic) and ROS 2 (Foxy, Humble), with comprehensive SDK documentation and examples.
Yes, we offer customization services including sensor integration, payload modifications, and software customization to meet specific requirements.
All products come with a 1-year warranty and lifetime technical support. Extended warranty options are available.
