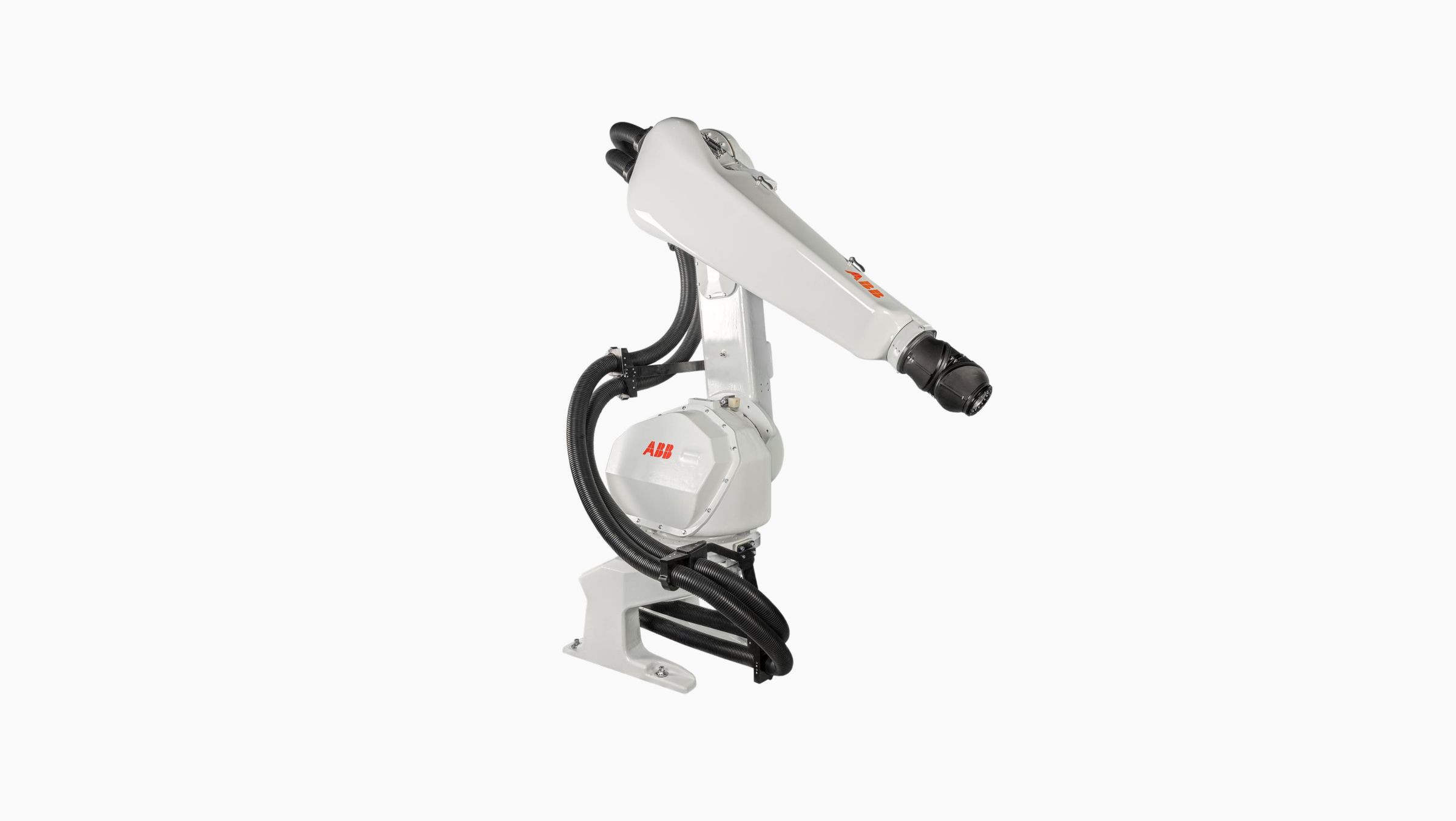

IRB 5500 FlexPainter
The IRB 5500 FlexPainter takes painting closer to perfection by integrating paint application equipment directly into the robot system. Combined with large work area, high acceleration, and painting speed, the result is the most efficient and flexible paint robot solution for automotive and industrial painting. Available in variants (5500-22 with 13 kg wrist payload, 5500-25 with rail mounting, 5500-27 with 7-axes), the FlexPainter reduces paint and solvent waste and enables multi-color painting with minimal changeover time.
Specifications
Payload on Wrist
13 kg (5500-22, 5500-27), varies by variant
Protection
IP67
Variants
5500-22 (standard), 5500-25 (rail-mounted), 5500-27 (7-axis)
Paint System
Solvent-based and water-based capable
Color Change
Up to 32 colors with circulation integrated
Atomizer
High flow RB1000 family
Operating Temperature
5°C to 45°C
Applications
Interior and exterior automotive painting, Industrial painting, Multi-color painting, Custom painting
Industries
Automotive manufacturing, General industry, Custom coating
Key Advantage
Integrated paint system reducing waste and color change time
Key Features
Integrated paint application equipment reducing waste and enabling color changes within 15 cm from wrist
Large work area enabling complete vehicle or part coverage in single cell
High acceleration and speed specifically designed for painting applications
Compact and lightweight paint application components positioned close to wrist
Color change valve integration for up to 32 colors with circulation capability
Solutions for both solvent-based and water-based paint systems
High flow RB1000 atomizer family designed for IRB 5500 performance parameters
IP67 protection suitable for industrial painting environments
Optional rail mounting (5500-25) for extended coverage on large components
7-axis variant (5500-27) enabling wider working range and flexible positioning
Product Description
The IRB 5500 FlexPainter takes painting closer to perfection by integrating paint application equipment directly into the robot system. Combined with large work area, high acceleration, and painting speed, the result is the most efficient and flexible paint robot solution for automotive and industrial painting. Available in variants (5500-22 with 13 kg wrist payload, 5500-25 with rail mounting, 5500-27 with 7-axes), the FlexPainter reduces paint and solvent waste and enables multi-color painting with minimal changeover time.
Frequently Asked Questions
The integrated paint application equipment positions pumps and regulators just 15 cm from the wrist, dramatically reducing paint and solvent waste during color changes. Combined with high acceleration and the RB1000 atomizer family, it delivers superior paint quality with minimal material waste.
Yes, the IRB 5500 is equipped with solutions for both solvent-based and water-based paint systems. This flexibility allows manufacturers to transition between paint types as needed and optimize for environmental compliance and performance.
The 5500-25 includes rail mounting enabling the robot to travel along the length of a large component or vehicle. This dramatically extends the effective work area and eliminates the need for moving the part, improving efficiency for large-component painting.
The 5500-27 features integrated 7-axis configuration enabling wider working range and more flexible installation positioning. This provides additional dexterity for complex components and easier integration into diverse manufacturing layouts.
With up to 32 colors integrated and circulation capability, the IRB 5500 switches colors quickly with minimal waste. This enables efficient multi-color painting on the same robot, reducing the number of robots needed and improving production flexibility.
The IRB 5500's high acceleration, speed, and the specialized RB1000 atomizer family deliver excellent paint coverage, finish quality, and consistency. The integrated system and optimized parameters ensure premium paint results suitable for automotive and high-end industrial applications.
