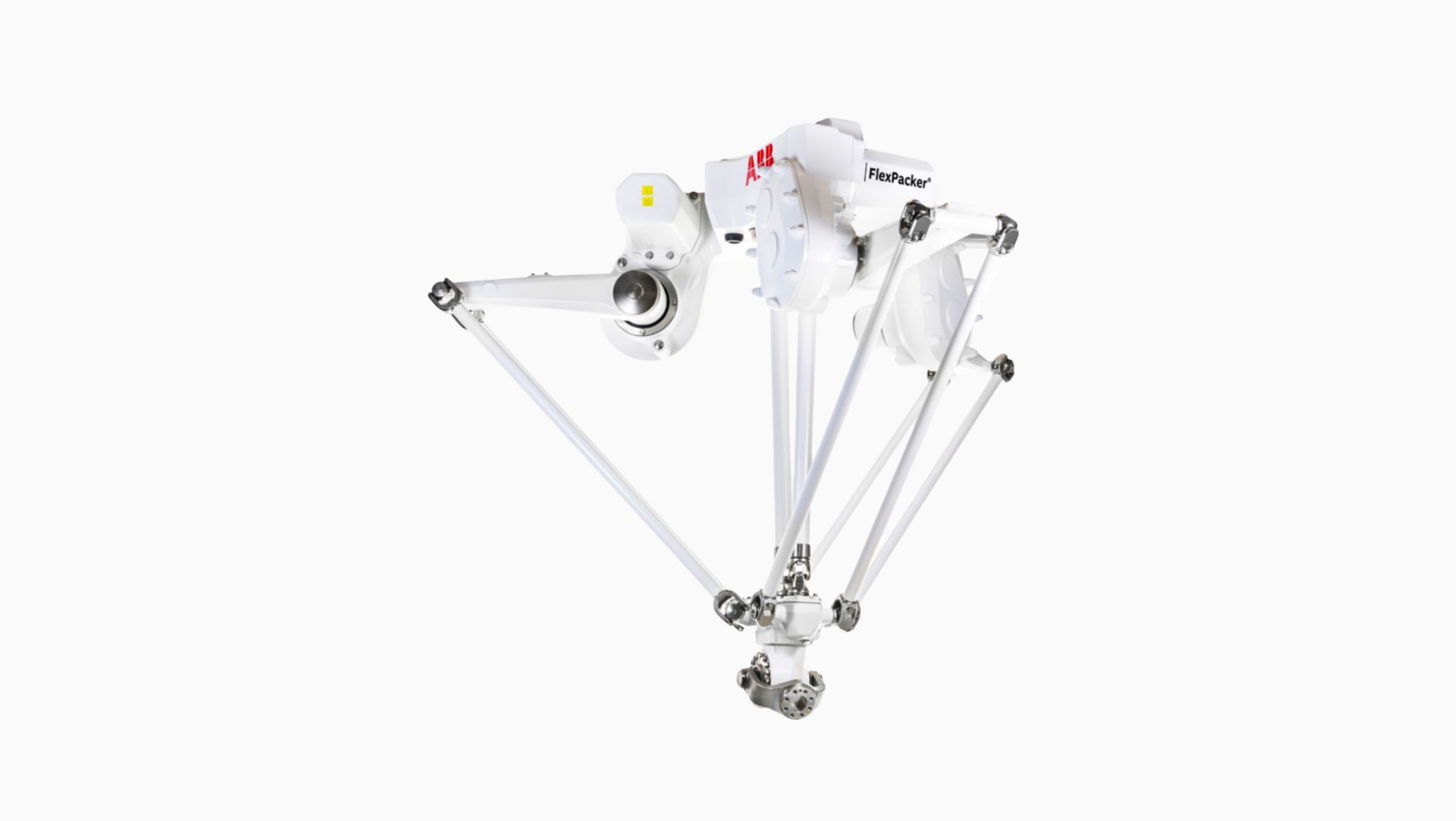

IRB 390 FlexPacker
The IRB 390 FlexPacker is ABB's groundbreaking innovation in delta robot technology, delivering 35% faster speed and 45% larger working volume compared to predecessors. With payload capacity up to 15 kg and working diameter up to 1300 mm, the IRB 390 is designed for ultra-fast, high-payload picking and packing from high-speed systems running up to 100 m/min. Available in 4-axis (15 kg) and 5-axis (10 kg) variants, it handles complex Shelf Ready Packaging (SRP) and Retail Ready Packaging (RRP) tasks with ease.
Specifications
Robot Type
4 or 5-axis Delta Robot
Payload Variants
10 kg (5-axis), 15 kg (4-axis)
Working Diameter
1300 mm
Axes
4 or 5
Repeatability
0.1 mm
Speed Improvement
35% faster than IRB 360
Volume Improvement
45% larger than IRB 360
Max Input Speed
100 m/min (conveyor systems)
Food Compliance
NSF H1 Food Grade Lubrication, FDA compliant
Operating Temperature
5°C to 45°C
Applications
Shelf Ready Packaging (SRP), Retail Ready Packaging (RRP), E-commerce picking, Logistics sorting, High-speed packing
Integration
PickMaster Twin software compatible
Key Features
35% faster operation and 45% larger working volume compared to predecessors
Class-leading payload capacity up to 15 kg for heavy-duty picking and packing
4-axis (15 kg) or 5-axis (10 kg) variants for flexibility vs payload trade-off
Handles products from high-speed systems running up to 100 m/min
5-axis variant enables vertical product orientation for Shelf Ready Packaging (SRP)
5-axis variant provides greater dexterity than equivalent 4-axis robots
NSF H1 Food Grade Lubrication and FDA compliance for food and beverage
Seamless integration with IRB 360 FlexPicker and PickMaster Twin software
Optimized for e-commerce fulfillment, logistics, and retail packaging
Large working volume (1300 mm) for comprehensive production cell coverage
Product Description
The IRB 390 FlexPacker is ABB's groundbreaking innovation in delta robot technology, delivering 35% faster speed and 45% larger working volume compared to predecessors. With payload capacity up to 15 kg and working diameter up to 1300 mm, the IRB 390 is designed for ultra-fast, high-payload picking and packing from high-speed systems running up to 100 m/min. Available in 4-axis (15 kg) and 5-axis (10 kg) variants, it handles complex Shelf Ready Packaging (SRP) and Retail Ready Packaging (RRP) tasks with ease.
Frequently Asked Questions
The 4-axis variant offers 15 kg payload but no vertical orientation capability. The 5-axis variant (10 kg payload) adds the 5th axis enabling vertical product orientation, greater dexterity, and flexibility for Shelf Ready Packaging. Choose based on whether orientation capability is needed.
The IRB 390's advanced motion control and high-speed servo systems enable it to accurately pick and place products from extremely fast-moving conveyors. This capability is essential for modern e-commerce and logistics operations processing high volumes of diverse packages.
The IRB 390's combination of high payload (15 kg), large working volume (1300 mm), and rapid cycle times makes it perfect for sorting and packing diverse e-commerce packages. The 5-axis variant's vertical orientation capability is especially valuable for efficient packaging.
Yes, the IRB 390 includes NSF H1 Food Grade Lubrication and FDA compliance, making it suitable for food and beverage packaging operations. This enables safe handling of food products while meeting industry hygiene and safety standards.
The larger 1300 mm working diameter means fewer robots are needed to cover the same production width, reducing capital costs. It also enables more flexible cell layouts and easier integration with existing conveyor systems and packaging equipment.
Yes, the IRB 390 is designed to work seamlessly with IRB 360 FlexPicker and PickMaster Twin software for comprehensive picking, sorting, and packing solutions. This enables sophisticated multi-stage fulfillment and packaging workflows.
