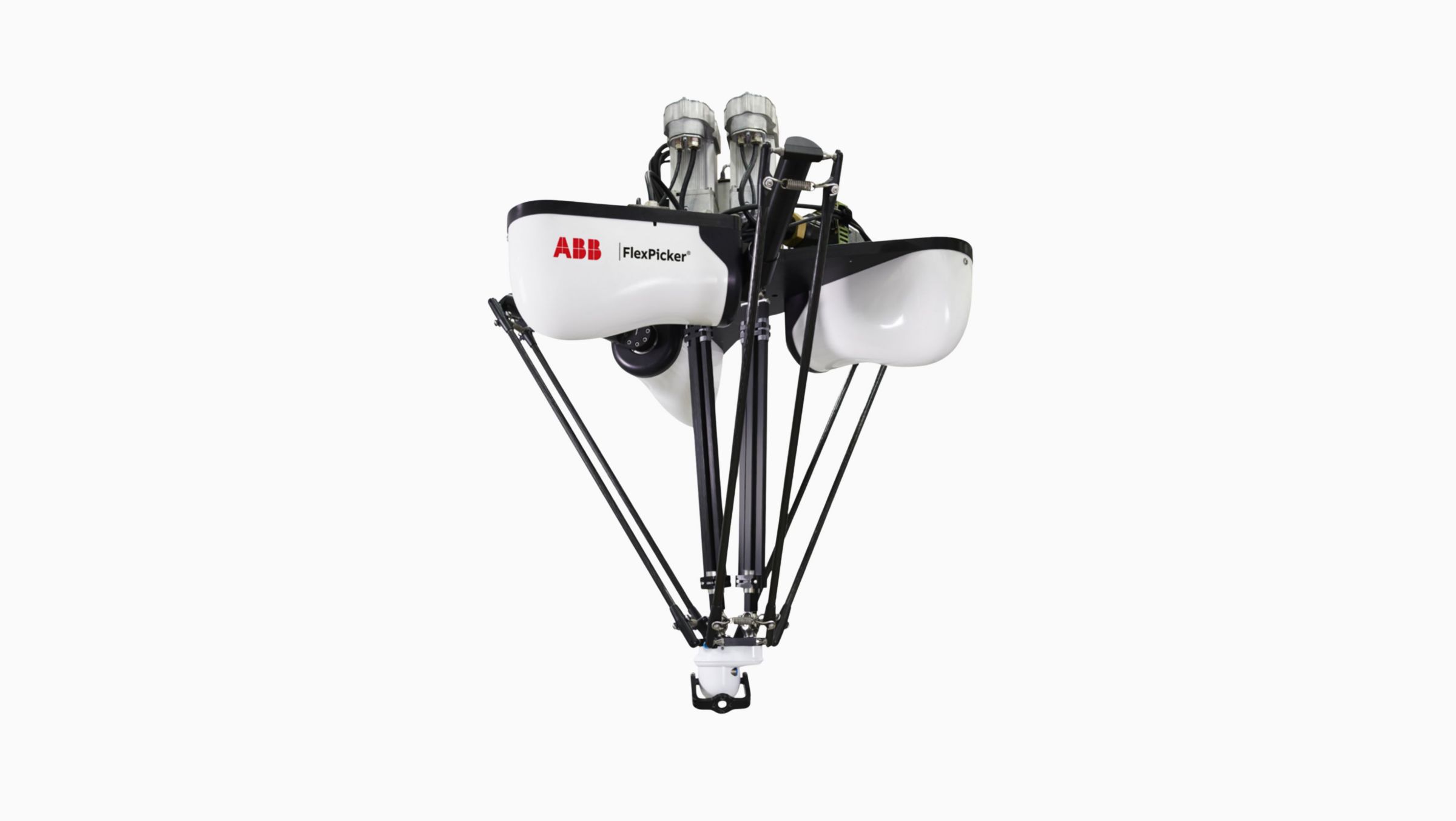

IRB 365 FlexPicker
The IRB 365 FlexPicker is a specialized 5-axis delta robot designed for high-speed reorientation and sophisticated picking tasks. With 1.5 kg payload and reach options of 800, 1100, or 1300 mm diameter, the IRB 365 delivers the fastest reorientation in its class at up to 120 picks per minute. The 5-axis design provides greater flexibility for Shelf Ready Packaging (SRP), parcel sorting, bottle unscrambling, and other complex picking operations where product orientation changes are essential.
Specifications
Robot Type
5-axis Delta Robot
Payload
1.5 kg
Reach Variants
800 mm, 1100 mm, 1300 mm diameter
Production Speed
Up to 120 picks per minute
Axes
5
Repeatability
High precision maintained at speed
Key Capability
Rapid product reorientation
Operating Temperature
5°C to 45°C
Software
PickMaster Digital Twin support
Applications
Shelf Ready Packaging (SRP), Parcel sorting, Bottle unscrambling, Product reorientation, Retail packaging
Industries
Food & beverage, E-commerce, Logistics, Consumer goods, Pharmaceutical
Key Features
5-axis design providing exceptional flexibility for complex picking tasks
Up to 120 picks per minute for fast-moving lightweight products
Three reach variants (800, 1100, 1300 mm) for flexible cell footprints
Rapid reorientation capability enabling top-loading and on-edge placement
1.5 kg payload ideal for lightweight products (cookies, bottles, parcels, cosmetics)
PickMaster Digital Twin reducing commissioning from days to hours
Fast changeover times from hours to minutes with digital simulation
Class-leading speed for lightweight product reorientation in high-mix environments
Seamless integration with IRB 360 FlexPicker and PickMaster Twin for comprehensive solutions
Highest flexibility in its class for diverse product handling
Product Description
The IRB 365 FlexPicker is a specialized 5-axis delta robot designed for high-speed reorientation and sophisticated picking tasks. With 1.5 kg payload and reach options of 800, 1100, or 1300 mm diameter, the IRB 365 delivers the fastest reorientation in its class at up to 120 picks per minute. The 5-axis design provides greater flexibility for Shelf Ready Packaging (SRP), parcel sorting, bottle unscrambling, and other complex picking operations where product orientation changes are essential.
Frequently Asked Questions
The 5th axis enables dynamic reorientation of products, allowing products to be picked in one orientation and placed in a completely different orientation. This is essential for Shelf Ready Packaging, retail packaging, and parcel sorting where product orientation directly impacts efficiency and presentation.
The IRB 365 handles lightweight products (up to 1.5 kg) including cookies, chocolates, peppers, candies, small bottles, cosmetics, parcels, and other products suited for rapid reorientation and placement. Its flexibility makes it ideal for high-mix, low-volume production runs.
Three reach variants (800, 1100, 1300 mm) adapt to different cell layouts and footprints. Smaller facilities can use 800 mm, while larger lines use 1300 mm. This flexibility enables optimal space utilization across diverse manufacturing environments.
PickMaster Digital Twin reduces commissioning time from days to hours by simulating picking operations in software before physical deployment. Changeover times drop from hours to minutes when switching products, significantly improving production flexibility and responsiveness.
Yes, the IRB 365 is designed to integrate with IRB 360 FlexPicker and PickMaster Twin software for comprehensive picking and packing solutions. The robots can work together for pre-sorting and group packing applications, optimizing overall workflow.
Typical cycle times are 5-10 seconds per pick depending on the complexity of product reorientation and placement. At 120 picks per minute capability, the IRB 365 delivers exceptional throughput for lightweight, high-volume picking and packing operations.
