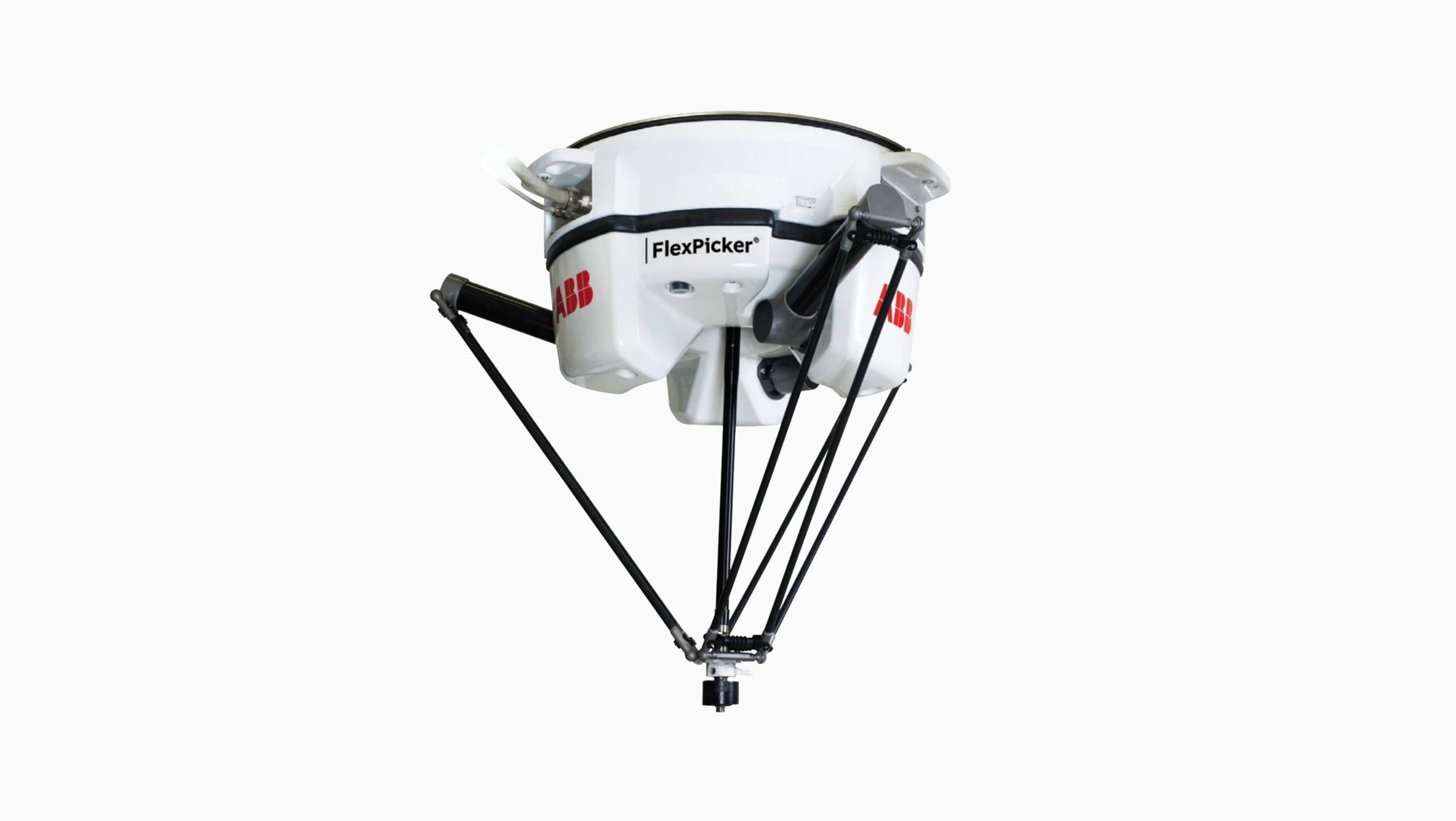

IRB 360 FlexPicker
The IRB 360 FlexPicker is the world's fastest industrial delta robot for picking and packing operations, holding the leader position for over 20 years. With payloads from 1 to 8 kg and reaches from 1130 to 1600 mm, the FlexPicker delivers outstanding motion performance with the shortest cycle times and exceptional accuracy. Up to 1200 picks per minute capability. Optimized for food, beverage, pharmaceutical, and electronics industries. IP69K validation for washdown environments and built-in PickMaster software support provide the most flexible picking solution for diverse manufacturing needs.
Specifications
Robot Type
3 or 4-axis Delta Robot
Payload Variants
1-8 kg
Reach (Diameter)
1130 mm or 1600 mm
Production Speed
Up to 1200 picks per minute
Path Control
Conveyor belt tracking with extreme accuracy
IP Rating
Standard IP54, IP69K option for food handling
Material Options
Stainless steel available for hygienic applications
Controller
OmniCore C30 or IRC5
Operating Temperature
5°C to 45°C
Tool Flange
Standard mounting for large adjustable grippers
Software
PickMaster support and integration
Mounting
Ceiling or floor-mounted
Available Variants
IRB 360-1/1130, IRB 360-3/1130, IRB 360-1/1600, IRB 360-6/1600, IRB 360-8/1130
Key Features
Fastest industrial delta robot in the world with up to 1200 picks per minute
Outstanding motion control with TrueMove and QuickMove technology for precision accuracy
Multiple variants: 1-8 kg payloads with 1130 mm or 1600 mm reaches
IP69K validation for food handling with high-pressure washdown capability
Stainless steel option available for hygienic processing in food and pharmaceutical applications
PickMaster software integration for vision configuration and high-speed picking optimization
Compatible with both OmniCore and IRC5 controllers for advanced motion control
Standard tool flange accommodates larger grippers for diverse product handling
OmniCore C30 controller option with 50% size reduction and rapid integration
Exceptional reliability and accuracy enabling operation at very high speeds
Product Description
The IRB 360 FlexPicker is the world's fastest industrial delta robot for picking and packing operations, holding the leader position for over 20 years. With payloads from 1 to 8 kg and reaches from 1130 to 1600 mm, the FlexPicker delivers outstanding motion performance with the shortest cycle times and exceptional accuracy. Up to 1200 picks per minute capability. Optimized for food, beverage, pharmaceutical, and electronics industries. IP69K validation for washdown environments and built-in PickMaster software support provide the most flexible picking solution for diverse manufacturing needs.
Frequently Asked Questions
The IRB 360 achieves its record-breaking speed of up to 1200 picks per minute through advanced motion control algorithms, optimized mechanical design, and precision servo systems. TrueMove and QuickMove technology ensure high acceleration and speed without compromising accuracy, allowing handling of products on fast-moving conveyor belts.
The IRB 360 is ideal for food and beverage, pharmaceuticals, consumer electronics, and general manufacturing. Its high-speed picking, conveyor tracking capability, and IP69K washdown option make it especially valuable in food processing where product variety and hygiene are critical.
Yes, the IRB 360 is available in multiple variants with payloads from 1 to 8 kg and two reach options (1130 mm and 1600 mm). This allows customization for different product sizes and weights. The standard tool flange accommodates various gripper designs for handling flow-wrapped, rigid, or delicate products.
IP69K means the robot can withstand high-pressure, hot-water washdown and industrial detergents used in food and pharmaceutical production. This hygiene capability is essential for maintaining safety and quality standards in regulated environments like food processing facilities.
PickMaster is specialized software that simplifies setup and integration of the IRB 360 for picking applications. It includes vision configuration tools, easy camera integration, and real-time path optimization, reducing commissioning time and enabling efficient high-speed picking with vision guidance.
Yes, the IRB 360 is specifically designed for food and beverage applications. The IP69K validated stainless steel option can handle industrial washdown, provides IP protection from moisture and contamination, and it's proven in thousands of installations across global beverage and food production lines.
