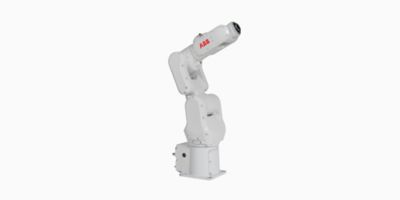

IRB 1100
The IRB 1100 is a class-leading compact robot delivering up to 35% faster cycle times and best-in-class repeatability for high-quality manufacturing. Available with payload options from 4 to 10 kg and reach up to 580 mm, the IRB 1100 offers the highest payload for a robot of its class while featuring a 10% smaller footprint and 20% weight reduction compared to previous generation. Powered by OmniCore, it's optimized for assembly, pick-and-place, and material handling in confined spaces.
Specifications
Payload
4-10 kg
Reach
580 mm
Number of Axes
6
Repeatability
±0.02 mm (position)
Weight
21 kg
IP Protection
IP54
Operating Temperature
5°C to 45°C
Mounting Direction
All directions
Controller
OmniCore (E10, C30, C90XT)
Applications
Assembly & Testing, Loading & Unloading, Screw driving, Polishing, Grinding, Deburring, Sanding
Energy Efficiency
20% reduction vs previous generation
Key Features
Up to 35% faster cycle times than competing robots in its class
Highest payload (up to 10 kg) for a robot with such compact dimensions
10% smaller footprint and over 20% weight reduction for space-efficient installation
OmniCore powered with advanced motion control (TrueMove and QuickMove)
Multiple mounting options: floor, wall, shelf, tilted, or inverted
Up to 16 I/O connections (C1+C2) for sophisticated applications
Excellent position repeatability enabling precise electronics assembly
Modular design allows multiple robots to work collaboratively
Product Description
The IRB 1100 is a class-leading compact robot delivering up to 35% faster cycle times and best-in-class repeatability for high-quality manufacturing. Available with payload options from 4 to 10 kg and reach up to 580 mm, the IRB 1100 offers the highest payload for a robot of its class while featuring a 10% smaller footprint and 20% weight reduction compared to previous generation. Powered by OmniCore, it's optimized for assembly, pick-and-place, and material handling in confined spaces.
Frequently Asked Questions
The IRB 1100 excels in assembly & testing, loading/unloading, screwdriving, polishing, grinding, buffing, and deburring applications. Its compact size, high speed, and precision make it ideal for electronics manufacturing, consumer goods, and precision engineering where space is limited.
Through optimized mechanical design, advanced OmniCore motion control with TrueMove for precision and QuickMove for speed optimization, and efficient servo systems. These improvements enable faster acceleration and movement without sacrificing accuracy.
Yes, the compact footprint allows multiple IRB 1100 robots to be deployed simultaneously in a single cell for collaborative automation operations. They can work together with synchronized movements for complex assembly tasks requiring more than one robot arm.
All variants share the same compact design and 580mm reach. The payload variants allow selection based on your specific application weight requirements. Higher payload variants may have slightly different speed characteristics but maintain the same compact footprint.
The 20% weight reduction means lighter mounting structures, simpler pedestal requirements, and lower installation costs. Combined with reduced energy consumption, it lowers overall total cost of ownership while maintaining the same performance level as heavier competitors.
Yes, the IRB 1100 is designed for continuous industrial operation. Its robust construction, OmniCore controller reliability, and extended service intervals make it suitable for round-the-clock manufacturing environments with minimal downtime.
