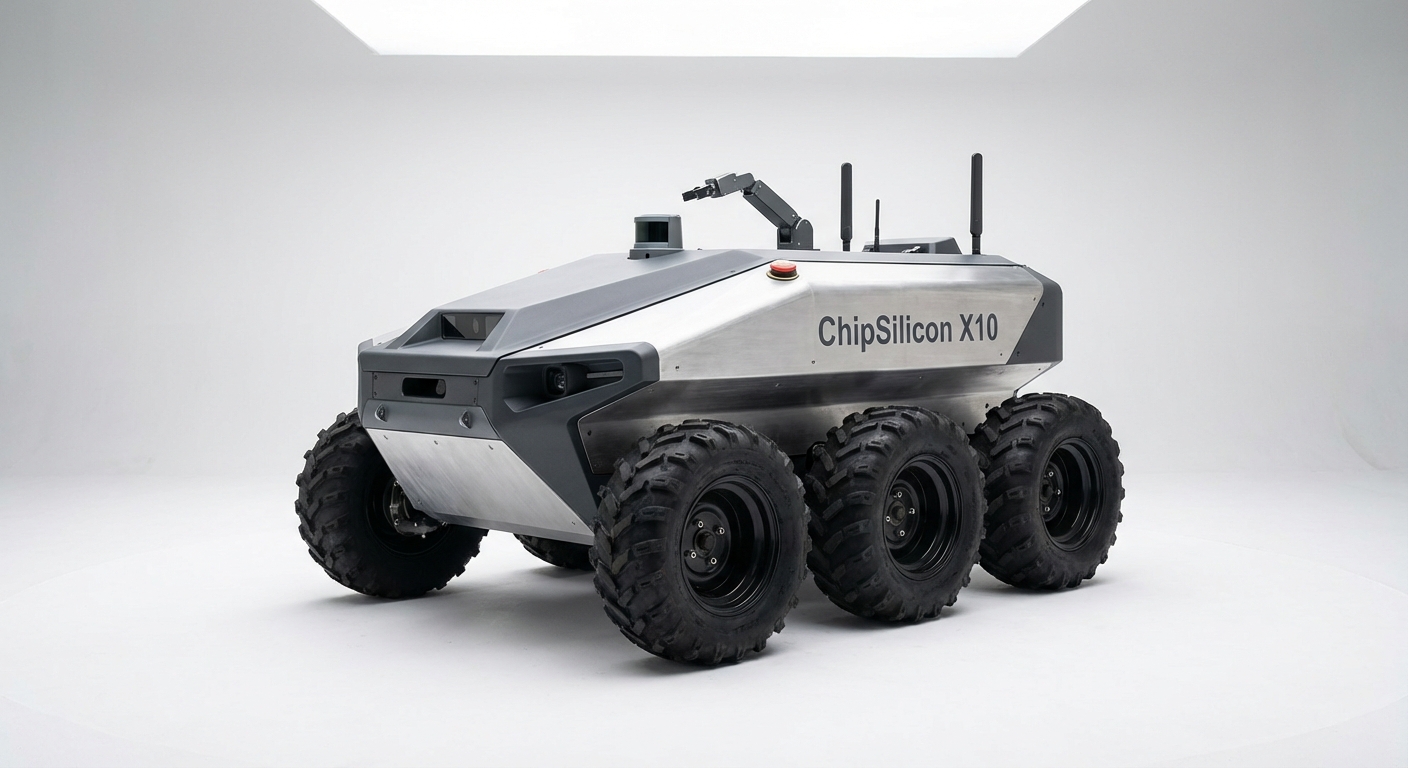

ChipSilicon X10
Conquer the unstructured world. The X10 is a rugged, autonomous mobile platform engineered for heavy-duty research, surveillance, and logistics. With advanced 3D perception and all-terrain mobility, it goes where others can't.
Engineered for Extremes
High-Torque Powertrain
Equipped with industrial-grade Brushless DC Motors , the X10 delivers immense torque for steep inclines while maximizing battery efficiency and minimizing maintenance.
Active Suspension
Rough terrain requires stability. Our advanced Suspension system absorbs shocks from rocks and gravel, ensuring smooth video feeds and stable sensor data collection.
3D Perception
See the world in high fidelity. The integrated 3D LiDAR enables real-time SLAM, complex obstacle avoidance, and precise mapping in any lighting condition.
Precision Agility
Utilizing a robust Differential Drive system, the X10 executes zero-radius turns, making it uniquely capable of navigating tight, complex outdoor environments.
Technical Specifications
| Drive Configuration | 4-Wheel Differential Drive |
| Motor Type | 4x High-Efficiency Brushless DC |
| Navigation Sensors | 360° 3D LiDAR (100m range), 9-DOF IMU, RTK-GPS |
| Suspension Travel | 120mm Independent Wishbone |
| Max Payload | 75 kg (165 lbs) |
| Operating Environment | IP65 Rated (All-weather Outdoor) |
