Fiducial Markers (AprilTags/ArUco)
See how high-fidelity visual markers deliver pinpoint localization, solid pose estimation, and effortless docking for AGVs in busy, changing spaces.
_hero.png)
Core Concepts
6-DOF Pose Estimation
Smart algorithms figure out the camera's full 6DOF (x, y, z, roll, pitch, yaw) relative to the tag for spot-on spatial smarts.
Binary Encoding
The black-and-white grid inside encodes a unique binary ID, so your robot knows Tag 1 from Tag 42.
Visual Robustness
AprilTags shine in tough lighting, steep views, or low-res cams—way better than basic QR codes for robotics.
Tag Families
Dictionaries like 36h11 or 16h5 balance unique tag count, detection distance, and false-positive blocks.
Homography
The system builds a homography matrix to link the tag's 2D corners in the image to its real 3D size.
Camera Calibration
Nailed pose needs camera calibration to fix lens warp and nail focal lengths.
How It Works

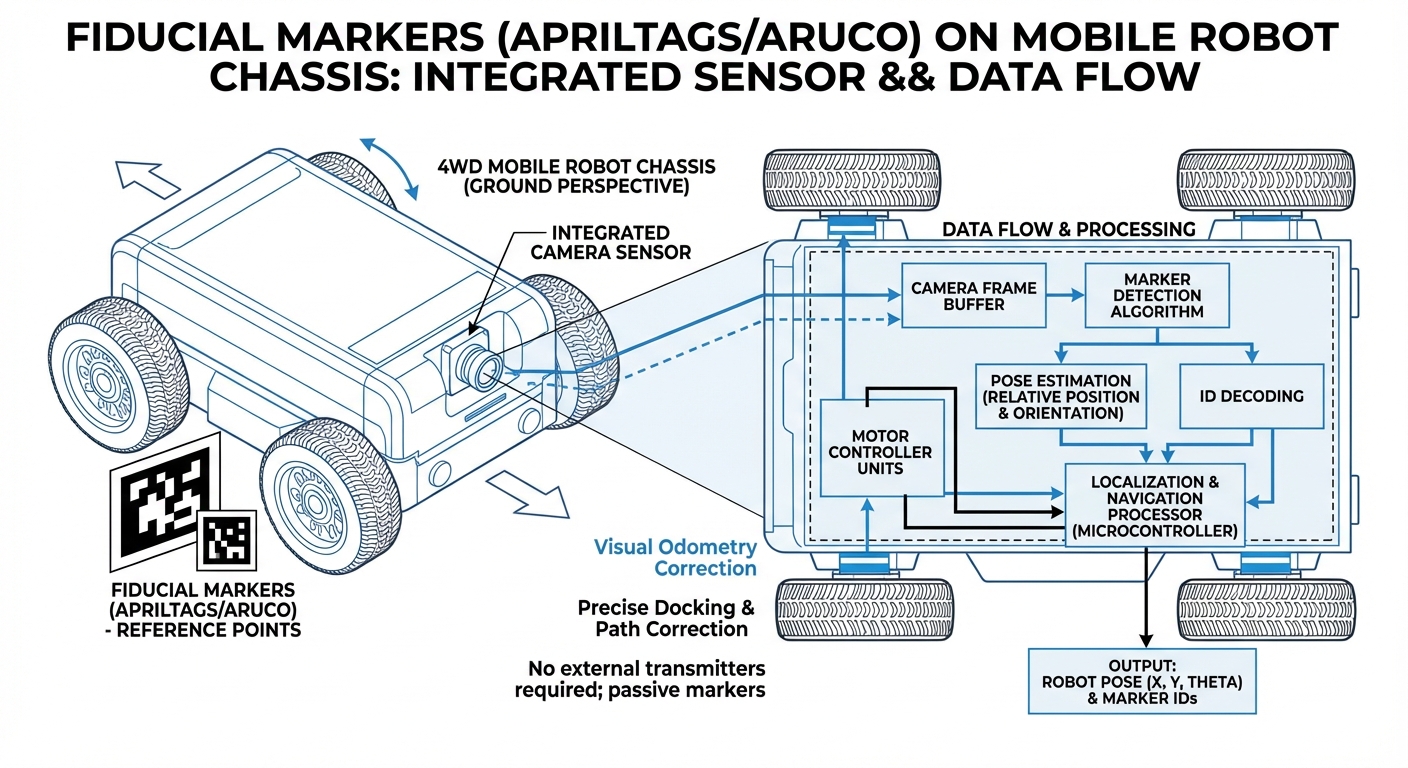

It starts with your AGV's camera snapping a frame. Software grays it out, thresholds for edges, and pulls out potential quads from the clutter.
Next, it scans the quad's grid for the binary pattern and matches it to the dictionary (say, AprilTag 36h11)—ID confirmed, plus rotation (0, 90, 180, 270°).
Last up: Using the tag's real size and camera calibration, the PnP solver crunches translation and rotation. Boom—precise 'ground truth' position for docking, where GPS or LiDAR can't match millimeter accuracy.
_diagram.png)
Real-World Applications
Precision Charging Docking
AGVs rely on fiducial markers on charging stations to tweak their approach angle and distance, making sure the charging contacts line up perfectly—no hands-on help required.
Warehouse Pallet Picking
Forklift AGVs use tags on pallet racks to spot storage locations and line up their forks exactly with pallet pockets, even fixing minor rack misalignments.
Multi-Floor Elevator Transit
Tags inside and outside elevators let robots double-check their floor and position themselves to slip safely in or out of the elevator car.
Drone Landing Pads
Aerial drones track big nested tags (tags inside tags) from high up all the way down to a precise centimeter landing on automated pads.
Frequently Asked Questions
What’s the biggest difference between AprilTag and ArUco markers?
Both are binary square fiducial markers, but AprilTags are tougher to beat at steep angles or in dim light, thanks to their clever edge detection and data encoding. ArUco markers rule in the OpenCV world and sip less computing power, ideal for basic setups.
How does lighting affect tag detection?
Lighting matters a ton. Shadows over a tag or spotty light (like glare on shiny paper) can mess up the black-and-white border detection. Go for matte prints and even, diffused lighting for rock-solid results.
What is the maximum detection distance for a tag?
How far you detect depends on tag size and camera resolution. Rule of thumb: the tag needs to span at least 20-30 pixels in the image for reliable reading. So, bigger tags or sharper/zoomier cameras for distance.
Which tag family should I pick, like 36h11 or 16h5?
For robotics, go with the 36h11 family—it's the go-to. You've got 587 unique IDs and strong error-checking to dodge false reads. 16h5 is quicker and smaller but way more likely to goof up, so skip it for key navigation.
Do I need a stereo camera for fiducial markers?
Nope, a regular single-lens camera does the trick. Since you know the tag's real size, the software crunches depth from one image alone—if your camera's calibrated right.
How do I handle motion blur with fast-moving AGVs?
Motion blur wrecking tag edges is a top detection killer. Fight it with a global shutter camera if you can, plus super-fast shutter speeds (short exposure). Crank up lights or gain to brighten things up.
Can AprilTags replace LiDAR for navigation?
Usually, no. LiDAR handles ongoing mapping and dodging obstacles. AprilTags are your landmarks for fixing LiDAR drift (loop closure) or nailing that last 10cm dock where LiDAR's too coarse.
What happens if a tag is partially obscured?
Standard detection needs the full black border (the 'quad') visible to spot the tag. Partial blocks? No dice. But 'Tag Bundles'—tags locked in fixed patterns—let robots track even if some are hidden.
Why is camera calibration so important?
Lenses warp things (think fisheye). Skip calibration to 'unwarp' the image and pinpoint the focal spot, and your pose math goes haywire—like seeing the tag left when it's straight ahead.
What is the pose ambiguity issue?
From far away or dead-on, tiny corner glitches can flip the pose estimate wildly. It's a PnP math quirk. Smooth it with time-based filters or a slight side angle instead of straight-on.
